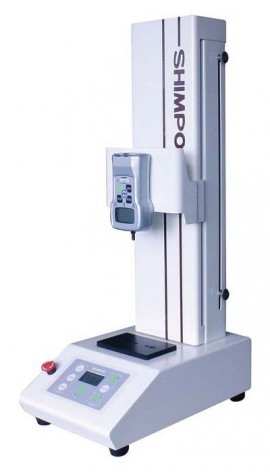

SHIMPO FGS-100EL Low Speed Vertical Motorized Test Stand, 110 lb (50 kg)

Model: FGS-100EL

SHIMPO FGS-100EL Low Speed Vertical Motorized Test Stand, 110 lb (50 kg)-


Downloads: datasheet manual

SHIMPO FGS-100EL Low Speed Vertical Motorized Test Stand, 110 lb (50 kg)

Model: FGS-100EL

Features a capacity capacity rating of 110 lbs. (50 kgf) in slow movement operation [0.23-7.00 in/min (6-180 mm/min)]. The FGS-100EL has simplified operation, eliminating lengthy training, and fours modes of operation: manual, jog, single cycle and continuous.

Features a capacity capacity rating of 110 lbs. (50 kgf) in slow movement operation [0.23-7.00 in/min (6-180 mm/min)]. The FGS-100EL has simplified operation, eliminating lengthy training, and fours modes of operation: manual, jog, single cycle and continuous.

Sale Price $2497.50 USD
Regular Price $2775.00 USD
Availability 4 Days
Quantity

SHIMPO FGS-100EL Offers

The FGS-100EL vertical, motorized force test stands combined with the SHIMPO line of superior quality force gauges create a complete force measurement system capable of handling the most precise testing applications. When connected to a SHIMPO FGV Force Gauge, the gauges programmable overload setting is communicated to the test stand, allowing the stand to stop at the overload set point and prevent potential damage to the gauge's sensor. Their all steel construction makes them remarkably rugged while performing with precision, providing the reliability to tackle a multitude of applications.

Features

  • Simplified 7 button key-pad with emergency safety stop provides a user-friendly platform that does not require extensive training
  • Compatibility with nearly all manufacturers' force gauges enables flexibility in testing applications
  • Field selectable inches/min or mm/min allows user preference or to change as needed per test requirement
  • Large 100-230 VAC power capability provides flexible installation; eliminates power transformer
  • Quick-adjust manual upper and lower limits eliminates set-up time for the next test
  • Compact, modular design reduces weight, footprint and cost of stand

SHIMPO FGS-100EL Specifications

Capacity 112.4 lbf (500N, 50kgf)
Movement Speed 6-180 mm/min (0.23-7.00in/min)
Speed Accuracy ±5%
Stroke 15.75 in (400 mm)
Display LCD 3 Digits indicates movement speed, Operation Mode
Operation Mode Manual (MAU), Jogging (JOG), Single Cycle (SIG) and Continuous (CON)
Input Over Load Input Stops by FGV Over Load Signal
Temperature Range 32 – 113°F (0 – 45°C) No Condensation
Dimensions Product: 3.66 × 5.91" (93 × 150 mm); Table: 3.66 × 5.91" (93 × 150 mm)
Weight 40.1 lbs (20 kg)
Click here for complete specifications on the SHIMPO FGS-100EL

What's included with the SHIMPO FGS-100EL

  • Test Stand
  • FGV overload set point communication cable

Click on a category to view a selection of compatible accessories with the SHIMPO FGS-100EL Low Speed Vertical Motorized Test Stand, 110 lb (50 kg).

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TJ10 Thread Adapter, M6 to 10/32 UNF FG-M6TJ10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TM10 Thread Adapter, M6 (FEM) to M10 (MALE) FG-M6TM10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6PIN1 Pin Head Grip, M6 Thread, 1mm FG-M6PIN1
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6PIN2 Pin Head Grip, M6 Thread, 2mm FG-M6PIN2
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6SPO10U Spool Grip, M6 Thread FG-M6SPO10U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spool grip attachment has a 100 lb. (45 kg) capacity and is for anchoring hard-to-hold items such as thread and filaments.




SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm FG-M6TAP30U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The tape grip attachment with self-tightening action has a 100 lb. (45 kg) capacity for testing rubber, tape, and paper.




SHIMPO FG-M6WDG50U Small Capacity Wedge Grip, M6 Thread FG-M6WDG50U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The wedge grip attachment has a 100 lb. (45 kg) capacity and has jaws that close on the specimen and tighten as tension is applied for testing wires, strip material, plastic tape, or film.




SHIMPO FG-M6PIN05 Pin Head Grip, M6 Thread, 0.5mm FG-M6PIN05
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6JAC5U Jacobs Chuck Grip, M6 Thread FG-M6JAC5U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The Jacobs chuck grip attachment has a 100 lb. (45 kg) capacity and is for testing low-gauge wire and rigid rods.




SHIMPO FG-M6FLM20 Wide Film Grip, M6 Thread, 20mm FG-M6FLM20
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spring-loaded film grip attachment with serrated jaws has a 100 lb. (45 kg) capacity.




SHIMPO FG-M6FPG3 Fine Point Grip, M6 Thread, 3mm FG-M6FPG3
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-M6FPG8 Fine Point Grip, M6 Thread, 8mm FG-M6FPG8
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-SPO10B Base Mount Spool Grip, For Test Stands FG-SPO10B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TAP30B Base Mount Tape Grip, For Test Stands FG-TAP30B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TEN7B Heavy Duty Base Mount Tensile Grip, 500lbs FG-TEN7B
The tensile base mount grip has manually tightened, serrated jaws for gripping large loads.




SHIMPO FG-WDG50B Small Capacity Wedge Grip, for Use with Test Stand Base FG-WDG50B
The wedge base mount grip has jaws that close on the specimen and tighten as tension is applied, for testing wires, strip material, plastic tape, or film.




SHIMPO FG-CLV10B Clevis Grip Base Mount for SHIMPO Test Stands, 500lbs FG-CLV10B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FAB80B Fabric Grip Base Mount for SHIMPO Test Stands, 500lbs FG-FAB80B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-FLM50B Film Grip Base Mount for SHIMPO Test Stands, 50mm FG-FLM50B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FTG20B Flat Chuck Base Mount Tensile Grip for SHIMPO Test Stands, 100lbs FG-FTG20B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-JAC5B Jacobs Chuck Base Mount Grip for SHIMPO Test Stands FG-JAC5B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-M10CLV10U Clevis Grip for SHIMPO Test Stands, 500lbs FG-M10CLV10U
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-M10COMP100U Steel Compression Plate for SHIMPO Test Stands, Ø100mm, 500lbs FG-M10COMP100U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 100mm and a capacity of 500lbs.




SHIMPO FG-M10COMP50U Steel Compression Plate for SHIMPO Test Stands, Ø50mm, 100lbs FG-M10COMP50U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 50mm and a capacity of 100lbs.




SHIMPO FGS-ACC Tool Accessory Kit for Test Stands FGS-ACC
Kit is for mounting a force gauge to a compatible test stand.
