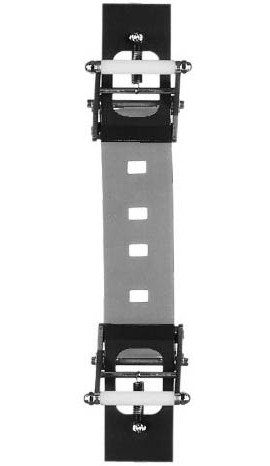

SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm

Model: FG-M6TAP30U

SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm -

SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm

Model: FG-M6TAP30U

The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The tape grip attachment with self-tightening action has a 100 lb. (45 kg) capacity for testing rubber, tape, and paper.

The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The tape grip attachment with self-tightening action has a 100 lb. (45 kg) capacity for testing rubber, tape, and paper.

Sale Price $225.00 USD
Regular Price $250.00 USD
Availability 4 Days
Quantity

What's included with the SHIMPO FG-M6TAP30U

  • SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm

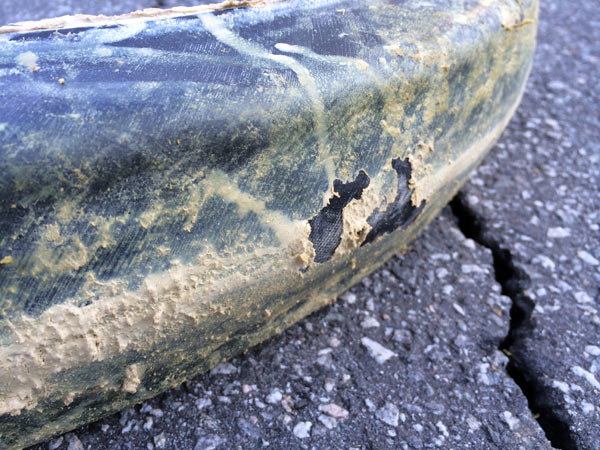

  • Tire Sealant Removal

    A global manufacturer of automotive tires contacted Nidec-Shimpo in search of a solution to help with a new process in their manufacturing.

    The engineering team was in need of a simple method to determine the amount of force required by an operator to completely remove the tire's internal sealant after they come off the production line.

    In order to simulate the human action of removing the sealant from the tire, it was recommended that they use a force test stand with mounted force gauge. They chose the FGS-220VC motorized test stand along with an FGV-10XY 10 lb (5 kg) capacity data-logging digital force gauge.

    "Shimpo’s FGV-10XY"

    FGV-10XY

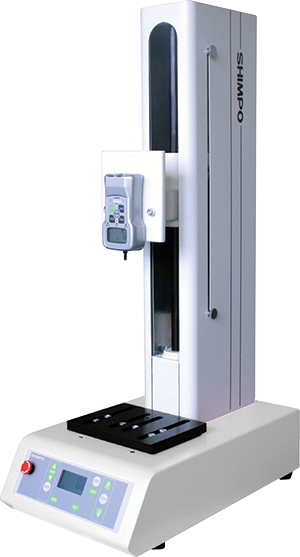

    FGS-220VC motorized test stand

    FGS-220VC

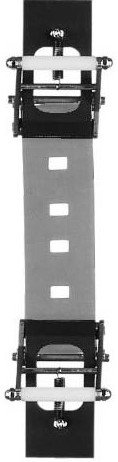

    Shimpo’s FG-M6TAP30U Tape grip

    FG-M6TAP30U

    The object of the test was to simulate an operator removing the inner sealant by measuring the amount of force necessary to separate and remove the sealant from the inside of the tire. Utilizing the FG-M6TAP30U tape grip connected to the force gauge, the simulation was achieved with a piece of tape affixed on the sealant inside the tire. By determining the point at which the tape/sealant broke away from the tire, enabled them to determine the level of force a worker would have to apply to remove the sealant during the production process.

    As a result of the testing, it was determined that approximately 8 pounds of force (3.6 kg) would be required to remove this substance from inside of the tires, well within the acceptable range a normal worker can routinely achieve and not have long term effects.
