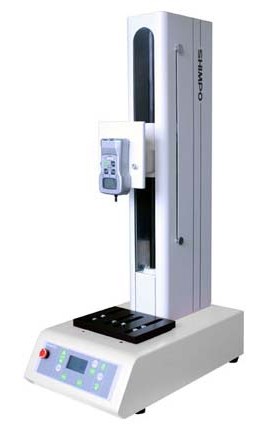

SHIMPO FGS-220VC Vertical Motorized Test Stand, 220 lb (100 kg)

Model: FGS-220VC

SHIMPO FGS-220VC Vertical Motorized Test Stand, 220 lb (100 kg)-


Downloads: datasheet manual

SHIMPO FGS-220VC Vertical Motorized Test Stand, 220 lb (100 kg)

Model: FGS-220VC

Provides accurate and repeatable results for tension, compression, break and cycle performance tests in various applications. It features a precision made servo gear head and ball screw for precise movement control. It can be operated by the keypad or through a PC via the FGT-VC software which includes data collection, graphing and statistical analysis.

Provides accurate and repeatable results for tension, compression, break and cycle performance tests in various applications. It features a precision made servo gear head and ball screw for precise movement control. It can be operated by the keypad or through a PC via the FGT-VC software which includes data collection, graphing and statistical analysis.

This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

Sale Price $4792.50 USD
Regular Price $5325.00 USD
Availability 1 to 2 Weeks
Quantity

SHIMPO FGS-220VC Offers

The FGS-220VC's large measurement area plus tall 15.75" (400 mm) travel distance allow large, unique parts to be tested. A precise and consistent 0.40-15.75"/min (10-400mm/min) adjustable speed provides for slow tests or quick cycle load testing. The FGT-VC software program allows graphing of force versus distance and the ability to compare several tests on a single graph. Another great feature of the FGT-VC is the comparator mode which enables quick decision pass /fail determination, ideal for production line testing. The simple keypad combined with the intuitive on screen operation guides the user through setting up each test. Users can perform standard tests in several automatic or manually selected modes as well as choose higher-end capabilities with the additional dwell time, adjustable acceleration, plus user-defined tests with up to 5 programmed set points.

Features

  • User friendly controls and software allows hands off operation, reduces training time, user errors and speeds up tests
  • The wide speed range means only one stand required for a majority of testing needs
  • Easy install force gauge bracket allows for multiple test ranges to be quickly used on one stand
  • FGT-VC software provides graphing analysis of one or several tests. Data can be stored for later analysis
  • Comparator function provides instant pass/fail result allowing for usage on production lines
  • Combining with FGE or FGV force gauges with the stand, overload limit communication is achieved, eliminating potential to damage the gauge accidentally during a test

SHIMPO FGS-220VC Specifications

Capacity 220 lb (100kg, 1000N)
Travel Speed 0.40-15.75"/min(10-400mm/min)
Speed Accuracy ±5%
Stroke 15.75" (400 mm)
Display Dot-matrix LCD Four digit
Operation Mode Single (SING); Continuous (CONT); Program (PROG); Manual (MANU); Jogging (JOG)
Communication USB
Input Over load from force gauge (The stand will stop immediately, if the over load is detected by force gauge.)
Measurement Table 5.91 x 7.87" (150 x 200 mm)
Temperature Limits 32 to 113°F (0 to 45°C)
Dimensions/Weight 11.81 x 34.84 x 19.69" (300 x 885 x 500mm)/139 lb(63 kg)
Click here for complete specifications on the SHIMPO FGS-220VC

What's included with the SHIMPO FGS-220VC

  • Test Stand
  • USB cable
  • Force Gauge Communication Cable
  • Gauge/Plate Mounting Accessories

Tire Sealant Removal

A global manufacturer of automotive tires contacted Nidec-Shimpo in search of a solution to help with a new process in their manufacturing.

The engineering team was in need of a simple method to determine the amount of force required by an operator to completely remove the tire's internal sealant after they come off the production line.

In order to simulate the human action of removing the sealant from the tire, it was recommended that they use a force test stand with mounted force gauge. They chose the FGS-220VC motorized test stand along with an FGV-10XY 10 lb (5 kg) capacity data-logging digital force gauge.

"Shimpo’s FGV-10XY"

FGV-10XY

FGS-220VC motorized test stand

FGS-220VC

Shimpo’s FG-M6TAP30U Tape grip

FG-M6TAP30U

The object of the test was to simulate an operator removing the inner sealant by measuring the amount of force necessary to separate and remove the sealant from the inside of the tire. Utilizing the FG-M6TAP30U tape grip connected to the force gauge, the simulation was achieved with a piece of tape affixed on the sealant inside the tire. By determining the point at which the tape/sealant broke away from the tire, enabled them to determine the level of force a worker would have to apply to remove the sealant during the production process.

As a result of the testing, it was determined that approximately 8 pounds of force (3.6 kg) would be required to remove this substance from inside of the tires, well within the acceptable range a normal worker can routinely achieve and not have long term effects.

Click on a category to view a selection of compatible accessories with the SHIMPO FGS-220VC Vertical Motorized Test Stand, 220 lb (100 kg).

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TJ10 Thread Adapter, M6 to 10/32 UNF FG-M6TJ10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TM10 Thread Adapter, M6 (FEM) to M10 (MALE) FG-M6TM10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M10TJ5/16 Thread Adapter, M10 to 5/16 18UNC FG-M10TJ5/16
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TM6 Thread Adapter, M10(FEM) to M6 (MALE) FG-M10TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TJ10 Thread Adapter, M4 to 10/32 UNF FG-M4TJ10
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TM6 Thread Adapter, M4 (FEM) to M6 (MALE) FG-M4TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M6FPG3 Fine Point Grip, M6 Thread, 3mm FG-M6FPG3
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-M6FPG8 Fine Point Grip, M6 Thread, 8mm FG-M6FPG8
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-M6JAC5U Jacobs Chuck Grip, M6 Thread FG-M6JAC5U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The Jacobs chuck grip attachment has a 100 lb. (45 kg) capacity and is for testing low-gauge wire and rigid rods.




SHIMPO FG-M6PIN05 Pin Head Grip, M6 Thread, 0.5mm FG-M6PIN05
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6PIN1 Pin Head Grip, M6 Thread, 1mm FG-M6PIN1
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6PIN2 Pin Head Grip, M6 Thread, 2mm FG-M6PIN2
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6SPO10U Spool Grip, M6 Thread FG-M6SPO10U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spool grip attachment has a 100 lb. (45 kg) capacity and is for anchoring hard-to-hold items such as thread and filaments.




SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm FG-M6TAP30U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The tape grip attachment with self-tightening action has a 100 lb. (45 kg) capacity for testing rubber, tape, and paper.




SHIMPO FG-M6WDG50U Small Capacity Wedge Grip, M6 Thread FG-M6WDG50U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The wedge grip attachment has a 100 lb. (45 kg) capacity and has jaws that close on the specimen and tighten as tension is applied for testing wires, strip material, plastic tape, or film.




SHIMPO FG-M6FLM20 Wide Film Grip, M6 Thread, 20mm FG-M6FLM20
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spring-loaded film grip attachment with serrated jaws has a 100 lb. (45 kg) capacity.




SHIMPO FG-SPO10B Base Mount Spool Grip, For Test Stands FG-SPO10B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TAP30B Base Mount Tape Grip, For Test Stands FG-TAP30B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TEN7B Heavy Duty Base Mount Tensile Grip, 500lbs FG-TEN7B
The tensile base mount grip has manually tightened, serrated jaws for gripping large loads.




SHIMPO FG-WDG50B Small Capacity Wedge Grip, for Use with Test Stand Base FG-WDG50B
The wedge base mount grip has jaws that close on the specimen and tighten as tension is applied, for testing wires, strip material, plastic tape, or film.




SHIMPO FG-CLV10B Clevis Grip Base Mount for SHIMPO Test Stands, 500lbs FG-CLV10B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FAB80B Fabric Grip Base Mount for SHIMPO Test Stands, 500lbs FG-FAB80B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-FLM50B Film Grip Base Mount for SHIMPO Test Stands, 50mm FG-FLM50B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FTG20B Flat Chuck Base Mount Tensile Grip for SHIMPO Test Stands, 100lbs FG-FTG20B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-JAC5B Jacobs Chuck Base Mount Grip for SHIMPO Test Stands FG-JAC5B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-M6COMP50U Compression Plate, M6 Thread, 50mm Diameter FG-M6COMP50U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M6COMP100U Compression Plate, M6 Thread, 100mm Diameter FG-M6COMP100U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M10COMP100U Steel Compression Plate for SHIMPO Test Stands, Ø100mm, 500lbs FG-M10COMP100U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 100mm and a capacity of 500lbs.




SHIMPO FG-M10COMP50U Steel Compression Plate for SHIMPO Test Stands, Ø50mm, 100lbs FG-M10COMP50U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 50mm and a capacity of 100lbs.




SHIMPO FG-M10CLV10U Clevis Grip for SHIMPO Test Stands, 500lbs FG-M10CLV10U
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-M10TWN500U Cord/Twine Grip, M10 Thread; Upper FG-M10TWN500U
The cord and twine grip with non-locking pins provides a figure-eight wrap of specimen to ensure a center break. It has a throat and pin clearance of 0.375" (9.65 mm) wide, and the throat width is 0.5" (12.7 mm).




SHIMPO FG-M10TWN500UB Cord/Twine Grip, M10 Thread; Upper & Lower FG-M10TWN500UB
The cord and twine grip with non-locking pins provides a figure-eight wrap of specimen to ensure a center break. It has a throat and pin clearance of 0.375" (9.65 mm) wide, and the throat width is 0.5" (12.7 mm).




SHIMPO FG-M10WDG500U High Capacity Wedge Grip, M10 Thread FG-M10WDG500U
The wedge grip attachment has a 500 lb. (250 kg) capacity and has jaws that close on the specimen and tighten as tension is applied for testing wires, strip material, plastic tape, or film.




SHIMPO FGS-ACC Tool Accessory Kit for Test Stands FGS-ACC
Kit is for mounting a force gauge to a compatible test stand.
