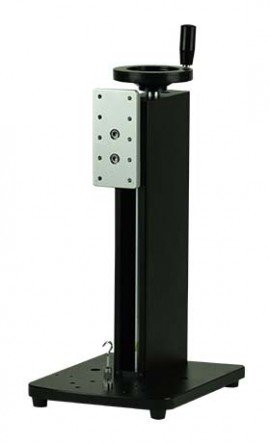

SHIMPO FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg), Vertical or Horizontal

Model: FGS-250W

SHIMPO FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg), Vertical or Horizontal-


Downloads: datasheet manual

SHIMPO FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg), Vertical or Horizontal

Model: FGS-250W

Vertical or Horizontal Manual Test Stand designed for tensile and compressive force testing and destructive or failure testing for research applications in a multitude of industries.

Vertical or Horizontal Manual Test Stand designed for tensile and compressive force testing and destructive or failure testing for research applications in a multitude of industries.

Sale Price $445.50 USD
Regular Price $495.00 USD
Availability 1 in Stock
Quantity

SHIMPO FGS-250W Offers

The FGS-250W movement is created from a trapezoidal screw drive with integral nut. Combined with its top-mounted wheel that smoothly turns with minimal effort, fine, stable resolution is achieved during operation. The FGS-250W offers dual functionality by being able to be used in either the vertical or horizontal positions with no added equipment required. Simply lay unit on its back and level with the adjustment screw and you now can run horizontal tests. The FGS-250W's compact footprint and lightweight frame enables ease of movement and usage in a myriad of locations.

Features

  • Flexible Vertical or Horizontal operation
  • Compact footprint & lightweight enables usage in most locations
  • Fine movement from the top-mounted wheel aids in precision testing
  • 250 lbf (125 kg) maximum testing capacity
  • Digital Scale kit available for high resolution movement recording
  • Optional Tensile Frame Kit extends movement stroke to over 10 inches

SHIMPO FGS-250W Specifications

Capacity Up to 250 lbf (125 kg)
Travel 0.12" (3 mm)/turn
Stroke 9" (230 mm) max
Dimensions/Weight 9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)/15.4 lb (7 kg)
Click here for complete specifications on the SHIMPO FGS-250W

What's included with the SHIMPO FGS-250W

  • Test Stand
  • Handle of Hand Wheel
  • Adapter Screw, M6
  • Screw M4 x 16 (6)

Click on a category to view a selection of compatible accessories with the SHIMPO FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg), Vertical or Horizontal.

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TJ10 Thread Adapter, M6 to 10/32 UNF FG-M6TJ10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M6TM10 Thread Adapter, M6 (FEM) to M10 (MALE) FG-M6TM10
The SHIMPO thread adapter is an accessory for SHIMPO force gauge test stands and force gauges. It fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, allowing a variety of accessories and parts to be attached and swapped.




SHIMPO FGS-250W-TFK Tensile Frame Kit FGS-250W-TFK
Tensile frame to be used with FGS-250W stand. Use for pull tests. 143lb capacity.




SHIMPO FG-M10TJ5/16 Thread Adapter, M10 to 5/16 18UNC FG-M10TJ5/16
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TM6 Thread Adapter, M10(FEM) to M6 (MALE) FG-M10TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TJ10 Thread Adapter, M4 to 10/32 UNF FG-M4TJ10
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TM6 Thread Adapter, M4 (FEM) to M6 (MALE) FG-M4TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M6FPG8 Fine Point Grip, M6 Thread, 8mm FG-M6FPG8
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-M6JAC5U Jacobs Chuck Grip, M6 Thread FG-M6JAC5U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The Jacobs chuck grip attachment has a 100 lb. (45 kg) capacity and is for testing low-gauge wire and rigid rods.




SHIMPO FG-M6PIN05 Pin Head Grip, M6 Thread, 0.5mm FG-M6PIN05
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6PIN1 Pin Head Grip, M6 Thread, 1mm FG-M6PIN1
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6PIN2 Pin Head Grip, M6 Thread, 2mm FG-M6PIN2
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The small-pin grip attachment (also called pin grip attachment) has a 22 lb. (11 kg) capacity and is for gripping wires and filaments.




SHIMPO FG-M6SPO10U Spool Grip, M6 Thread FG-M6SPO10U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spool grip attachment has a 100 lb. (45 kg) capacity and is for anchoring hard-to-hold items such as thread and filaments.




SHIMPO FG-M6TAP30U Tape Grip, M6 Thread, 30mm FG-M6TAP30U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The tape grip attachment with self-tightening action has a 100 lb. (45 kg) capacity for testing rubber, tape, and paper.




SHIMPO FG-M6WDG50U Small Capacity Wedge Grip, M6 Thread FG-M6WDG50U
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The wedge grip attachment has a 100 lb. (45 kg) capacity and has jaws that close on the specimen and tighten as tension is applied for testing wires, strip material, plastic tape, or film.




SHIMPO FG-M6FPG3 Fine Point Grip, M6 Thread, 3mm FG-M6FPG3
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The fine-point grip attachment is for gripping fine- to medium-gauge wire, ribbon tape, and paper.




SHIMPO FG-M6FLM20 Wide Film Grip, M6 Thread, 20mm FG-M6FLM20
The SHIMPO M6 thread test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials. The attachment has an M6 thread. The spring-loaded film grip attachment with serrated jaws has a 100 lb. (45 kg) capacity.




SHIMPO FG-SPO10B Base Mount Spool Grip, For Test Stands FG-SPO10B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TAP30B Base Mount Tape Grip, For Test Stands FG-TAP30B
The SHIMPO base mount test stand grip is an accessory for SHIMPO force gauge test stands that attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-TEN7B Heavy Duty Base Mount Tensile Grip, 500lbs FG-TEN7B
The tensile base mount grip has manually tightened, serrated jaws for gripping large loads.




SHIMPO FG-WDG50B Small Capacity Wedge Grip, for Use with Test Stand Base FG-WDG50B
The wedge base mount grip has jaws that close on the specimen and tighten as tension is applied, for testing wires, strip material, plastic tape, or film.




SHIMPO FG-CLV10B Clevis Grip Base Mount for SHIMPO Test Stands, 500lbs FG-CLV10B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FAB80B Fabric Grip Base Mount for SHIMPO Test Stands, 500lbs FG-FAB80B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-FLM50B Film Grip Base Mount for SHIMPO Test Stands, 50mm FG-FLM50B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-FTG20B Flat Chuck Base Mount Tensile Grip for SHIMPO Test Stands, 100lbs FG-FTG20B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FG-JAC5B Jacobs Chuck Base Mount Grip for SHIMPO Test Stands FG-JAC5B
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials.




SHIMPO FGS-250W-DSK Digital Length Scale FGS-250W-DSK
Digital scale for use with FGS-250W SHIMPO Stand.




SHIMPO FG-M6COMP50U Compression Plate, M6 Thread, 50mm Diameter FG-M6COMP50U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M10COMP100U Steel Compression Plate for SHIMPO Test Stands, Ø100mm, 500lbs FG-M10COMP100U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 100mm and a capacity of 500lbs.




SHIMPO FG-M10COMP50U Steel Compression Plate for SHIMPO Test Stands, Ø50mm, 100lbs FG-M10COMP50U
For top-load testing and compression or crush testing on large samples. Includes one compression plate that attaches to the test stand. Made from stainless steel, which resists wear and corrosion, and has a polished finish that can be wiped clean. Has a diameter of 50mm and a capacity of 100lbs.




SHIMPO FG-M6COMP100U Compression Plate, M6 Thread, 100mm Diameter FG-M6COMP100U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M10CLV10U Clevis Grip for SHIMPO Test Stands, 500lbs FG-M10CLV10U
For use with SHIMPO Test Stands. Attaches to a test stand to allow testing on a range of materials. Features a M10 thread.




SHIMPO FG-M10TWN500U Cord/Twine Grip, M10 Thread; Upper FG-M10TWN500U
The cord and twine grip with non-locking pins provides a figure-eight wrap of specimen to ensure a center break. It has a throat and pin clearance of 0.375" (9.65 mm) wide, and the throat width is 0.5" (12.7 mm).




SHIMPO FG-M10TWN500UB Cord/Twine Grip, M10 Thread; Upper & Lower FG-M10TWN500UB
The cord and twine grip with non-locking pins provides a figure-eight wrap of specimen to ensure a center break. It has a throat and pin clearance of 0.375" (9.65 mm) wide, and the throat width is 0.5" (12.7 mm).




SHIMPO FG-M10WDG500U High Capacity Wedge Grip, M10 Thread FG-M10WDG500U
The wedge grip attachment has a 500 lb. (250 kg) capacity and has jaws that close on the specimen and tighten as tension is applied for testing wires, strip material, plastic tape, or film.




SHIMPO FGS-ACC Tool Accessory Kit for Test Stands FGS-ACC
Kit is for mounting a force gauge to a compatible test stand.
