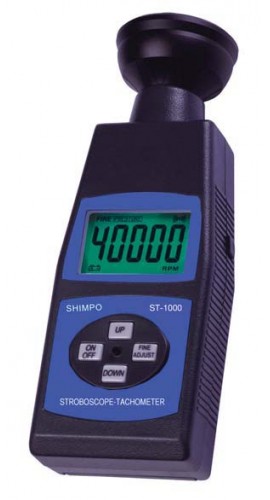

SHIMPO ST-1000 Compact Handheld LED Stroboscope-Tachometer

Model: ST-1000

SHIMPO ST-1000 Compact Handheld LED Stroboscope-Tachometer-


Downloads: datasheet manual

SHIMPO ST-1000 Compact Handheld LED Stroboscope-Tachometer

Model: ST-1000

Adjustable in either coarse or fine step flash-rate tuning. The backlit display shows the current flash rate, 10 user-stored pre-set flash rates, as well as a low battery warning. The backlit feature can be switched off to save battery life if desired.

Adjustable in either coarse or fine step flash-rate tuning. The backlit display shows the current flash rate, 10 user-stored pre-set flash rates, as well as a low battery warning. The backlit feature can be switched off to save battery life if desired.

Sale Price $188.10 USD
Regular Price $209.00 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your ST-1000

Add In-House Traceable Calibration to your ST-1000


SHIMPO ST-1000 Offers

This velocity analyzing and measuring device is ideal for rotational machine inspection. The stroboscope is capable of flashing the light in a synchronous frequency to the operating machinery, creating the illusion of viewing stopped or slowed images. Utilizing this phenomenon of slowing or stopping the motion with the adjusted rate of the ST-1000's flashing light, machine parts and processes may be inspected for defects. Plus, the rotational speed of the machinery and systems may be recorded for further performance analysis. The ergonomic, hand held device is made of sturdy ABS plastic and comes with batteries and protective carrying case. The LED technology extends operation due to the low energy requirement of the light diodes compared with xenon stroboscopes.

Features

  • Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • 100 – 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
  • Long-life LED operation

Applications

Typical applications for using the ST-1000 is to inspect rotors, meshing gears, vibration diagnostic equipment, textile equipment, printing production lines, power tools, speaker acoustical analysis, fan balancing and many more.

SHIMPO ST-1000 Specifications

Range 60 to 40,000 RPM; 1-2000 Hz
Accuracy ±0.05% F.S.
Lux Rating 650 Lux @ 3000 RPM & 3.9 in (10 cm);350 Lux @ 3000 RPM & 7.9 in (20 cm);185 Lux @ 3000 RPM & 11.8 in (30 cm)
Resolution <1000 RPM: 0.1 RPM; >1000 RPM: 1 RPM
Tuning <1000 RPM: Coarse=10 RPM increments; Fine= 0.1 RPM increments.>1000 RPM: Coarse=100 RPM increments; Fine= 1 RPM increments
Rate Storage 10 stored user-defined flash rates. Factory Defaults: 4000, 8000, 12000, 16000, 20000, 24000, 28000, 32000, 36000, 40000.
Power Supply 4 AA batteries
Housing ABS Plastic
Dimensions/Weight 7.7 x 2.9 x 1.5" (195 x 73 x 38 mm)/7 oz. (200 g)
Click here for complete specifications on the SHIMPO ST-1000

What's included with the SHIMPO ST-1000

  • Stroboscope
  • 4 AA Batteries
  • Protective Carrying Case
