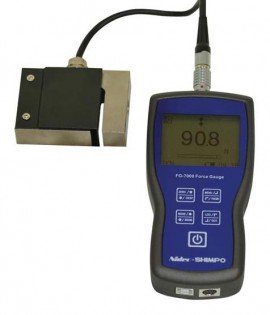

SHIMPO FG-7000L Series Digital Force Gauge with remote Load Cell

SHIMPO FG-7000L Series Digital Force Gauge with remote Load Cell-


Downloads: datasheet manual

SHIMPO FG-7000L Series Digital Force Gauge with remote Load Cell

Force gauge with load cells for both tension and compression tests. This force gauge/datalogger series features a capacity of 100kg to 200 kN.

Force gauge with load cells for both tension and compression tests. This force gauge/datalogger series features a capacity of 100kg to 200 kN.


SHIMPO FG-7000L-Series Offers

This unit provides menu programming for easy selection and set-up of the instrument to your desired requirements. Four selectable modes of operation include: Track mode for live readings, Peak mode for displaying the maximum reading, Auto Peak where the peak resets after a programmed period of time and First Peak where only the initial peak is recorded once a decrease is sensed. This high-tech instrument can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for integration of the instrument into a quality system for repetitive testing such as on a production line.

Features

  • 1000 Hz Sample Rate combined with ±0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Four mode operation: Track, Peak, First Peak & Auto-Peak
  • 180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable high and low Limits allow for instant visual and audible indication of pass or fail testing
  • 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering units selection provides flexible user comfort
  • Datalogging/graphing software available for free download on website

Applications

  • Incoming quality inspection
  • Finished goods testing
  • Research and development
  • Most force testing requirements

SHIMPO FG-7000L-Series Specifications

Accuracy ± 0.2% F.S.
Overload Capacity S-Beam Type: 150% of F.S.
Ring Type: 120% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Autopeak, First Peak or Track Mode
Data Sampling Rate 1000 Hz
Display 160x128 dot matrix LCD with LED Backlight
Display Update Rate 10 times/second
Power Supply 3.6VDC 800mAH Ni-MH rechargeable batteries
Dimensions/Weight 5.7 x 2.9 x 1.4" (145 x 73 x 35.5 mm)/1.5 lb (700g)
Click here for complete specifications on the SHIMPO FG-7000L-Series

What's included with the SHIMPO FG-7000L-Series

  • Force Gauge
  • Calibration Certificate
  • Adapter/Charger
  • USB Cable

Click on a category to view a selection of compatible accessories with the SHIMPO FG-7000L Series Digital Force Gauge with remote Load Cell.

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
