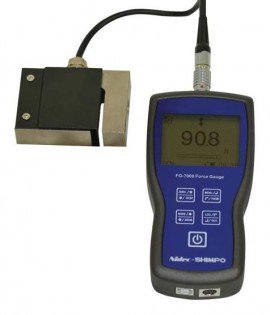

SHIMPO FG-7000L-R-20 Digital Force Gauge/Data Logger with ring type load cell, 4500 lbs

Model: FG-7000L-R-20

SHIMPO FG-7000L-R-20 Digital Force Gauge/Data Logger with ring type load cell, 4500 lbs-


Downloads: datasheet manual

SHIMPO FG-7000L-R-20 Digital Force Gauge/Data Logger with ring type load cell, 4500 lbs

Model: FG-7000L-R-20

Ring style load cell for compression applications with a capacity up to 4500 lb with selectable units of measure (kN, N, kgf, tf, lbf and klbf). 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis.

Ring style load cell for compression applications with a capacity up to 4500 lb with selectable units of measure (kN, N, kgf, tf, lbf and klbf). 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis.

Sale Price $1237.50 USD
Regular Price $1375.00 USD
Availability 1 to 2 Weeks
Quantity

SHIMPO FG-7000L-R-20 Offers

This unit provides menu programming for easy selection and set-up of the instrument to your desired requirements. Four selectable modes of operation include: Track mode for live readings, Peak mode for displaying the maximum reading, Auto Peak where the peak resets after a programmed period of time and First Peak where only the initial peak is recorded once a decrease is sensed. This high-tech instrument can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for integration of the instrument into a quality system for repetitive testing such as on a production line.

Features

  • 1000 Hz Sample Rate combined with ±0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Four mode operation: Track, Peak, First Peak & Auto-Peak
  • 180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable high and low Limits allow for instant visual and audible indication of pass or fail testing
  • 1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering units selection provides flexible user comfort
  • Datalogging/graphing software available for free download on website

Applications

  • Incoming quality inspection
  • Finished goods testing
  • Research and development
  • Most force testing requirements

SHIMPO FG-7000L-R-20 Specifications

Capacity 20 kN, 2000 kg, 4500 lbs
Resolution 0.05 kN, 0.5 kg, 1 lb
Accuracy ±0.2% F.S.
Overload Capacity 120% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Autopeak, First Peak or Track Mode
Data Sampling Rate 1000 Hz
Display 160 x 128 dot matrix LCD with LED Backlight
Display Update Rate 10 times/second
Power Supply 3.6 VDC 800 mAH Ni-MH rechargeable batteries
Dimensions 5.7 x 2.9 x 1.4" (145 x 73 x 35.5 mm)
Weight 1.5 lbs (700 g)
Click here for complete specifications on the SHIMPO FG-7000L-R-20

What's included with the SHIMPO FG-7000L-R-20

  • Force Gauge
  • Calibration Certificate
  • Adapter/Charger
  • USB Cable
