SHIMPO MP-10 Magnetic Pick-Up Sensor

Model: MP-10

SHIMPO MP-10 Magnetic Pick-Up Sensor-


Downloads: manual

SHIMPO MP-10 Magnetic Pick-Up Sensor

Model: MP-10

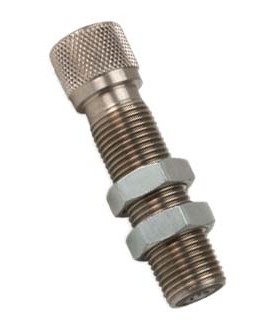

Provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time. The unit will mount in a 5/8" thread hole and is provided with 2 jam nuts to secure the sensor.

Provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time. The unit will mount in a 5/8" thread hole and is provided with 2 jam nuts to secure the sensor.

Sale Price $112.50 USD
Regular Price $125.00 USD
Availability 2 in Stock
Quantity

SHIMPO MP-10 Offers

Features

  • Sine wave output from change in magnetic to non-magnetic
  • Change in voltage proportional to magnetic flux intensity over time
  • Range of 0.01" (0.25 mm) typical clearance
  • Mounts in a 5/8" thread hole
  • Temperature: -40 to 221°F
  • Lead Wire Connections: Shield, White and Black
  • Tachometer Terminals: E, SIG and OV
  • 10' (3 m) cable

What's included with the SHIMPO MP-10

  • SHIMPO MP-10 Magnetic Pick-Up Sensor
