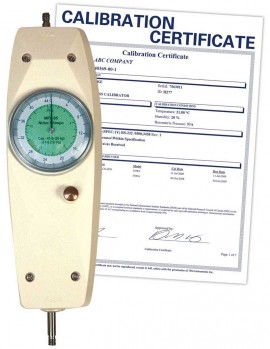

    • SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg), includes Traceable Calibration Certificate

    Model: MFD-04-NIST

    SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg), -

    Downloads: datasheet manual

    SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg), includes Traceable Calibration Certificate

    Model: MFD-04-NIST

    This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

    This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

    Discontinued!

    This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

    Visit our Force Gauges category for similar products.

    Or let's do a search and help you find what you need:

    Shimpo MFD-04-NIST Offers

    This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

    Features

    • Economical mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications
    • Measures tension and compression forces with only one gauge
    • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
    • Precision gauge movement provides a quick response for instantaneous analysis
    • Large dial indicator allows viewing of force changes as they occur, reducing the chance for parallax errors when taking readings
    • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
    • Easy push-button reset is especially helpful for repetitive testing
    • Designed for handheld use, but may also be used with the optional handle - great for loads over 15 pounds (6.8 kg)
    • Rear threaded inserts makes it easy to mount to test stands

    Shimpo MFD-04 Specifications

    Accuracy ±1% F.S.
    Dial Graduations 0.1 lb (0.1 kg)
    Display Analog 2: (50 mm) diameter dial; rotatable 360° for taring purposes
    Live/Peak Mode Selectable
    Needle Update Immediate
    Threaded Insert 4 on back for mounting inserts
    Overload Capacity 120%
    Weight 1.25 lb (0.57 kg)
    Click here for complete specifications on the SHIMPO MFD-04-NIST

    What's included with the Shimpo MFD-04-NIST

    • Mechanical Force Gauge
    • Traceable Calibration Certificate with full Data and Uncertainties
    • 6 attachments (hook, flat tip, cone tip, chisel tip, notched tip, extension rod)
    • Mounting Screws
    • Carrying Case
    • Calibration Certificate
    datasheet for the SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg), manual for the SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg),

    Click on a category to view a selection of compatible accessories with the SHIMPO MFD-04 Dual Scale Mechanical Force Gauge, 22lb (10kg), .

    SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
    For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
