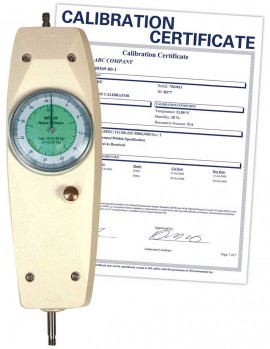

SHIMPO MFD-02 Dual Scale Mechanical Force Gauge, 4.5lb (2kg), includes Traceable Certificate

Model: MFD-02-NIST

SHIMPO MFD-02 Dual Scale Mechanical Force Gauge, 4.5lb (2kg),  -


Downloads: datasheet manual

SHIMPO MFD-02 Dual Scale Mechanical Force Gauge, 4.5lb (2kg), includes Traceable Certificate

Model: MFD-02-NIST

This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control. This product includes a Traceable Certificate with full Data and Uncertainties.

This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control.

Sale Price $369.00 USD
Regular Price $410.00 USD
Availability 1 to 2 Weeks
Quantity

Shimpo MFD-02-NIST Offers

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Economical mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications
  • Measures tension and compression forces with only one gauge
  • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Large dial indicator allows viewing of force changes as they occur, reducing the chance for parallax errors when taking readings
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Easy push-button reset is especially helpful for repetitive testing
  • Designed for handheld use, but may also be used with the optional handle - great for loads over 15 pounds (6.8 kg)
  • Rear threaded inserts makes it easy to mount to test stands

Shimpo MFD-02 Specifications

Accuracy ±1% F.S.
Dial Graduations0.02 lb (0.02 kg)
Display Analog 2" (50 mm) diameter dial; rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert 4 on back for mounting inserts
Overload Capacity 120%
Weight 1.25 lb (0.57 kg)
Click here for complete specifications on the SHIMPO MFD-02-NIST

What's included with the Shimpo MFD-02-NIST

  • Mechanical Force Gauge
  • Traceable Certificate with full Data and Uncertainties
  • 6 attachments (hook, flat tip, cone tip, chisel tip, notched tip, extension rod)
  • Mounting Screws
  • Carrying Case
  • Calibration Certificate

Click on a category to view a selection of compatible accessories with the SHIMPO MFD-02 Dual Scale Mechanical Force Gauge, 4.5lb (2kg), .

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
