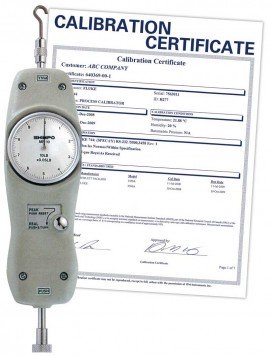

SHIMPO MF-50KG-NIST Mechanical Force Gauge, includes Traceable Certificate

Model: MF-50KG-NIST

SHIMPO MF-50KG-NIST Mechanical Force Gauge, -


Downloads: datasheet manual

SHIMPO MF-50KG-NIST Mechanical Force Gauge, includes Traceable Certificate

Model: MF-50KG-NIST

Comes in a durable and user-friendly design, making this mechanical force gauge ideal for push/pull force testing in manufacturing, material testing, maintenance, and inspection applications. Additionally, this unit has a capacity of 110 lbs (50 kg). This product includes a Traceable Certificate with full Data and Uncertainties.

Comes in a durable and user-friendly design, making this mechanical force gauge ideal for push/pull force testing in manufacturing, material testing, maintenance, and inspection applications. Additionally, this unit has a capacity of 110 lbs (50 kg).

Sale Price $598.50 USD
Regular Price $665.00 USD
Availability 2 to 3 Weeks
Quantity

SHIMPO MF-50KG-NIST Offers

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Outstanding ±0.2% F.S. accuracy makes the MF's Ideal even for the strictest applications
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces - Only one gauge required for insertion withdrawal tests
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Exceptionally rugged die-cast aluminum housing enables usage in harshest conditions
  • Overload protected to 165 lbs (74.84 kg) protects gauge from accidental damage
  • Peak Mode Reset is an ideal for repetitive peak testing applications
  • English and metric models available satisfies many testing parameters
  • Compact, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands

Applications

  • Manufacturing
  • Material testing
  • Maintenance
  • Inspection

SHIMPO MF-50KG-NIST Specifications

Capacity 110 lbs (50 kg)
Dial Graduation 0.55 lbs (0.25 kg)
Accuracy ±0.2% F.S.
Display Analog 2" (50 mm) in diameter: Rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Weight 1.6 lbs (0.73 kg)
Click here for complete specifications on the SHIMPO MF-50KG-NIST

What's included with the SHIMPO MF-50KG-NIST

  • Gauge
  • Traceable Certificate with full Data and Uncertainties
  • Flat Head
  • Hook
  • Chisel
  • Notched Head
  • Cone Head
  • Extension Rod
  • Large Hook
  • Large V-Hook
  • Carrying Case
  • Two-Year Warranty

Click on a category to view a selection of compatible accessories with the SHIMPO MF-50KG-NIST Mechanical Force Gauge, .

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
