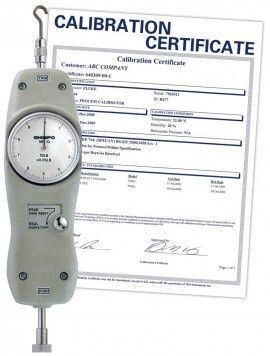

SHIMPO MF-100-NIST Mechanical Force Gauge, includes Traceable Certificate

Model: MF-100-NIST

SHIMPO MF-100-NIST Mechanical Force Gauge, -


Downloads: datasheet manual

SHIMPO MF-100-NIST Mechanical Force Gauge, includes Traceable Certificate

Model: MF-100-NIST

Durable and user-friendly, these mechanical gauges are excellent for repetitive testing in assembly line or quality control lab applications. Additionally, this unit has a capacity of 100 lbs and features peak mode and real-time mode. This product includes a Traceable Certificate with full Data and Uncertainties.

Durable and user-friendly, these mechanical gauges are excellent for repetitive testing in assembly line or quality control lab applications. Additionally, this unit has a capacity of 100 lbs and features peak mode and real-time mode.

Sale Price $598.50 USD
Regular Price $665.00 USD
Availability 1 to 2 Weeks
Quantity

Recommended Accessories


SHIMPO MF-100-NIST Offers

Ergonomically designed for handheld use, gauges may be used with the optional handle (great for loads over 15 pounds). Response time is immediate. Large, easy to read dial indicators are designed to reduce gauge parallax.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Outstanding ±0.2% F.S. accuracy makes the MF's Ideal even for the strictest applications
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces - Only one gauge required for insertion withdrawal tests
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Exceptionally rugged die-cast aluminum housing enables usage in harshest conditions
  • Overload protected to 165 lbs (74.84 kg) protects gauge from accidental damage
  • Peak Mode Reset is an ideal for repetitive peak testing applications
  • English and metric models available satisfies many testing parameters
  • Compact, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands

SHIMPO MF-100-NIST Specifications

Capacity 100 lbs
Dial Graduation 0.5 lb
Accuracy ±0.2% F.S.
Display Analog 2" diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Product Weight 1.6 lbs (0.73 kg)
Package Weight 4 lbs (1.81 kg)
Click here for complete specifications on the SHIMPO MF-100-NIST

What's included with the SHIMPO MF-100-NIST

  • Gauge
  • Traceable Certificate with full Data and Uncertainties
  • Flat Head
  • Hook
  • Chisel
  • Notched Head
  • Cone Head
  • Extension Rod
  • Large Hook
  • Large V-Hook
  • Carrying Case
  • Two-Year Warranty

Click on a category to view a selection of compatible accessories with the SHIMPO MF-100-NIST Mechanical Force Gauge, .

SHIMPO MFP-HANDLE Optional Handle for Shimpo MF Series MFP-HANDLE
Attaches to a Force Gauge to allow force to be applied by hand. It has a 100lb (45kg) capacity.




SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
