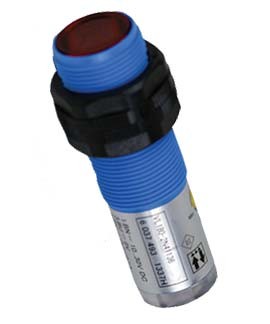

SHIMPO MCS-655P Reflective Sensor, 1000 Hz, Plastic Housing

Model: MCS-655P

SHIMPO MCS-655P Reflective Sensor, 1000 Hz, Plastic Housing-


Downloads: manual

SHIMPO MCS-655P Reflective Sensor, 1000 Hz, Plastic Housing

Model: MCS-655P

Photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. It comes with a connection cable, LED status indicator, sensitivity control and mounting nuts.

Photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. It comes with a connection cable, LED status indicator, sensitivity control and mounting nuts.

Sale Price $135.00 USD
Regular Price $150.00 USD
Availability 2 to 3 Weeks
Quantity

SHIMPO MCS-655P Offers

Features

  • Sensing distance up to 23' (7 m)
  • Polarizing filter ensures reliable detection of highly-reflective objects
  • Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
  • Bright red sender LED simplifies alignment and saves installation time
  • Reflector Included
  • High switching frequencies up to 1000 Hz
  • The flat and smooth lens reduces the collection of dust and dirt, ensuring reliable operation
  • Polarizing filter prevents false readings on reflective surfaces, reducing errors

SHIMPO MCS-655P Specifications

Sensor/Detection Principle Photoelectric retro-reflective sensor
Housing Length 2.5" (62.9 mm)
Housing Thread Diameter M18 x 1
Sensing Range 2" to 23' (0.05 to 7 m)
Light/Source Visible red LED
Light Spot @ Distance 19.7' (6 m) 15.75" (400 mm)
Wave Length 645 nm
Sensitivity Adjustment Turnable Potentiometer over 270°
Supply Voltage 10-30 V DC
Switching Output NPN open collector, Light/dark-switching, Selectable via L/D control wire
Signal Voltage NPN HIGH⁄LOW Approx. VS ⁄ < 1.8 V
Max Output Current 100 mA
Response Time 0.5ms
Switching Frequency 1,000 Hz with light/dark ratio 1:1
Angle of Dispersion Ca. 4.5 °
Ambient Operating Temperature -13 to 131 °F (-25 to 55 °C)
Housing Material PBT and PC
Optics Material PMMA
Cable Material PVC
Connection Type Cable, 4-wire, 6.6' (2 m)
Circuit Protection Inputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected
Weight 2.2oz (62 g)
Enclosure Rating IP 67

What's included with the SHIMPO MCS-655P

  • Reflective Sensor
  • Fastening nuts (2 x)
  • Reflector Target
  • Reflection Tape

Click on a category to view a selection of compatible accessories with the SHIMPO MCS-655P Reflective Sensor, 1000 Hz, Plastic Housing.
