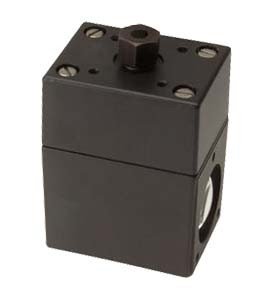

SHIMPO MCS-625 Reflective Sensor, 250 Hz

Model: MCS-625

SHIMPO MCS-625 Reflective Sensor, 250 Hz-


Downloads: manual

SHIMPO MCS-625 Reflective Sensor, 250 Hz

Model: MCS-625

Retro-reflective photo sensor consisting of an infrared source, sensing circuit and amplifier which are contained in a heavy-duty housing and an open collector output. For initial alignment purposes, a small indicator lamp is located on top of the sensor housing.

Retro-reflective photo sensor consisting of an infrared source, sensing circuit and amplifier which are contained in a heavy-duty housing and an open collector output. For initial alignment purposes, a small indicator lamp is located on top of the sensor housing.

This product has been discontinued. Click here for the replacement model(s).


SHIMPO MCS-625 Specifications

Operational Range 1" to 3'
Power Input 12 to 18VDC at 35 to 50 mA
Output Open collector type sink current 250 mA (max) (NPN Sinking Output)
Activating Frequency 250 Hz
Housing Zinc die-cast
Cable 10' (3 m)
Weight 18.5 oz
Mounting 4 mounting holes in base (3 holes in face)

What's included with the SHIMPO MCS-625

  • SHIMPO MCS-625 Reflective Sensor, 250 Hz
  • Customer Reviews for the SHIMPO MCS-625

    Ask a question about SHIMPO MCS-625 Reflective Sensor, 250 Hz

    SHIMPO MCS-625 Specifications

    Operational Range 1" to 3'
    Power Input 12 to 18VDC at 35 to 50 mA
    Output Open collector type sink current 250 mA (max) (NPN Sinking Output)
    Activating Frequency 250 Hz
    Housing Zinc die-cast
    Cable 10' (3 m)
    Weight 18.5 oz
    Mounting 4 mounting holes in base (3 holes in face)

    What's included with the SHIMPO MCS-625

  • SHIMPO MCS-625 Reflective Sensor, 250 Hz
  • Ask a question about SHIMPO MCS-625 Reflective Sensor, 250 Hz

    Customer Reviews for the SHIMPO MCS-625
