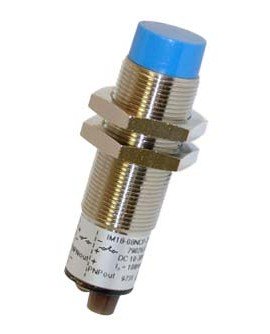

SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas

Model: MCS-3109

SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas-


Downloads: manual

SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas

Model: MCS-3109

Complimentary (NPN-NO and NPN-NC) proximity sensor normally used in high-vibration areas and where a greater sensing distance is required.

Complimentary (NPN-NO and NPN-NC) proximity sensor normally used in high-vibration areas and where a greater sensing distance is required.

Sale Price $202.50 USD
Regular Price $225.00 USD
Availability 4 Days
Quantity

SHIMPO MCS-3109 Specifications

Sensing Distance 8 mm (0.32")
Activating Frequency 300 Hz
Voltage Requirement 10 - 30 VDC
Output NPN (NO, NC)
Output Current 100 mA
Cable 6.5' (2 m)
Housing Nickel plated brass
Ambient Temperature -25 to 70°C (-13 to 158°F)
Degree of Protection IP67 / NEMA 4 (for use in high vibration areas)

What's included with the SHIMPO MCS-3109

  • SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas
  • Customer Reviews for the SHIMPO MCS-3109

    Ask a question about SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas

    SHIMPO MCS-3109 Specifications

    Sensing Distance 8 mm (0.32")
    Activating Frequency 300 Hz
    Voltage Requirement 10 - 30 VDC
    Output NPN (NO, NC)
    Output Current 100 mA
    Cable 6.5' (2 m)
    Housing Nickel plated brass
    Ambient Temperature -25 to 70°C (-13 to 158°F)
    Degree of Protection IP67 / NEMA 4 (for use in high vibration areas)

    What's included with the SHIMPO MCS-3109

  • SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas
  • Ask a question about SHIMPO MCS-3109 Proximity Sensor, High Vibration Areas
