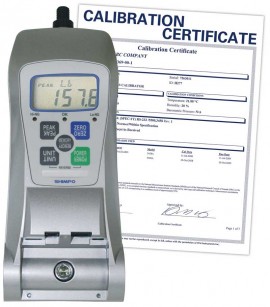

SHIMPO FGV-500HXY-NIST High Capacity Digital Force Gauge, 500 lbs, includes Traceable Certificate

Model: FGV-500HXY-NIST

SHIMPO FGV-500HXY-NIST High Capacity Digital Force Gauge, 500 lbs, -


Downloads: datasheet manual

SHIMPO FGV-500HXY-NIST High Capacity Digital Force Gauge, 500 lbs, includes Traceable Certificate

Model: FGV-500HXY-NIST

Enhanced heavy-duty housing allows it to be utilized in high capacity tension and compression applications, and the 180° reversible display combined with the adjustable force direction and dual labeled keypad enable it to excel in both compression and tension applications in any direction. Features a capacity of 500 lbs, and a resolution of 0.1 lb. This product includes a Traceable Certificate with full Data and Uncertainties.

Enhanced heavy-duty housing allows it to be utilized in high capacity tension and compression applications, and the 180° reversible display combined with the adjustable force direction and dual labeled keypad enable it to excel in both compression and tension applications in any direction. Features a capacity of 500 lbs, and a resolution of 0.1 lb.

Sale Price $1179.00 USD
Regular Price $1310.00 USD
Availability 1 to 2 Weeks
Quantity

SHIMPO FGV-500HXY-NIST Offers

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • 1000 Hz sample rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy ±0.2% F.S.
  • Measure and record compression and tension tests - permits true "push-pull" testing
  • 180° reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Included handle attachment aid in testing heavy loads
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing readings
  • Quick retrieval of peak measurement with a single push button in test stand
  • Flexible user preference with one button selection of engineering units
  • Field calibration through keypad eliminates down time
  • On board statistics provides immediate results and analysis of test data
  • Dual power capable with rechargeable battery or AC line voltage
  • Include data collection flexibility with three outputs: USB, RS-232 and Analog Output
  • Expanded memory for reviewing data points and transferring to PC/Laptop
  • Provide built In Hi-Lo comparator function provides user with easy 'Go-No Go' testing
  • CE Mark and RoHs Approval

Applications

  • Incoming quality inspection
  • Finished goods testing
  • R&D

SHIMPO FGV-500HXY-NIST Specifications

Capacity 500 lbs, 250 kg, 2500 N
Resolution 0.1 lb/0.1 kg/1 N
Accuracy ±0.2% F.S.
Display Four digit LCD, 0.47" high (12 mm) with various indicators including tension and low battery indication (reversible) Minus sign for tension
Average/Peak Mode Selectable
Display Update 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate 1000 Hz
Overload 150% of F.S.
Power Rechargeable Ni-Cad battery or AC adapter/charger
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Battery Charge 17 hours (when fully charged)
Temperature Range 32 to 104°F (0 to 40°C)
Dimensions 8.43 x 3.23 x 2.25" (214 x 82 x 57 mm)
Weight Approximately 2 lbs (900 g)
Certification CE, RoHs
Click here for complete specifications on the SHIMPO FGV-500HXY-NIST

What's included with the SHIMPO FGV-500HXY-NIST

  • Force Gauge
  • Traceable Certificate with full Data and Uncertainties
  • 2 x Handles
  • Metric Thread to Inch Adapter
  • Hook
  • Chisel
  • Flat Head
  • Notched Head
  • Hanger
  • Cone Head
  • Extension Rod
  • USB Cable
  • Carrying Case
  • AC Adapter/Charger

Click on a category to view a selection of compatible accessories with the SHIMPO FGV-500HXY-NIST High Capacity Digital Force Gauge, 500 lbs, .

SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.




SHIMPO FG-M4TM6 Thread Adapter, M4 (FEM) to M6 (MALE) FG-M4TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TJ10 Thread Adapter, M4 to 10/32 UNF FG-M4TJ10
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TM6 Thread Adapter, M10(FEM) to M6 (MALE) FG-M10TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TJ5/16 Thread Adapter, M10 to 5/16 18UNC FG-M10TJ5/16
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10RD Steel Extension Rod, M10 Thread FG-M10RD
For use with SHIMPO FGE-HX and FGV-HX Digital Force Gauges.




SHIMPO FG-M10CN Steel Cone Head Adapter for the FGE-HX and FGV-HX Series, M10 Thread FG-M10CN
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Made of stainless steel, which resists corrosion and wear.




SHIMPO FG-M10CL Steel Chisel Adapter for the FGE-HX and FGV-HX Series, M10 Thread FG-M10CL
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Made of stainless steel, which resists corrosion and wear.




SHIMPO FG-M10ADP Standard Steel Adapter Set for the FGE-HX and FGV-HX Series FG-M10ADP
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Set includes one flat, chisel, pointed, notched, hook, and extension rod. Features a M10 thread.




SHIMPO FG-M6COMP50U Compression Plate, M6 Thread, 50mm Diameter FG-M6COMP50U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M6COMP100U Compression Plate, M6 Thread, 100mm Diameter FG-M6COMP100U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO UNI-MTGPL Mounting Plate UNI-MTGPL
For use with FG-3000, FG-7000, FGE/V-XY, FGE/V-HXY Force Gauges.
