SHIMPO FGE-500HXY High Capacity Digital Force Gauge 500 lb/250 kg/2500 N

Model: FGE-500HXY

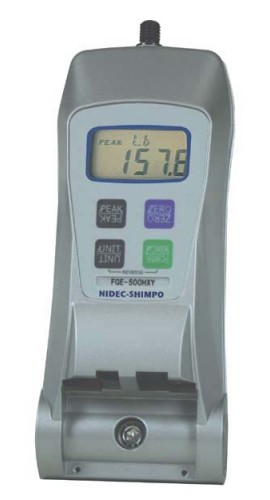

SHIMPO FGE-500HXY High Capacity Digital Force Gauge 500 lb/250 kg/2500 N-


Downloads: datasheet manual

SHIMPO FGE-500HXY High Capacity Digital Force Gauge 500 lb/250 kg/2500 N

Model: FGE-500HXY

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.

Sale Price $841.50 USD
Regular Price $935.00 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your FGE-500HXY

Add In-House Traceable Calibration to your FGE-500HXY


SHIMPO FGE-500HXY Offers

The Series FGE-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. Simple one button adjustment alters units, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-HXY to excel in both compression and tension applications in any direction.

Features

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy ±0.2% F.S.
  • Measure and record compression and tension tests. Permits true "push-pull" testing
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing of readings
  • Real Time or Peak hold mode easily selectable with a single button push
  • Flexible user preference with one button selection of engineering units
  • Field calibration through keypad eliminates down time
  • Dual power capable with rechargeable battery or AC line voltage
  • CE Mark & RoHS Approval

Applications

  • Incoming Quality Inspection
  • Finished Goods Testing
  • Research & Development
  • Ergonomic and Isokinetic Testing
  • Most Force Testing Requirements

SHIMPO FGE-500HXY Specifications

Capacity 500 lb; 250 kg; 2500 N
Resolution 0.1 lb; 0.1 kg; 1 N
Accuracy ±0.2% F.S. at 73°F (23°C)
Overload Capacity 150% of F.S.
Data Sampling Rate 1000 Hz
Display 4-digit LCD, 0.5" high (12 mm) Units 0.29" (7 mm). Reversible. Minus sign for tension.
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power Supply Rechargeable Ni-MH battery or universal AC adapter/charger (100-240 VAC, 50/60 Hz)
Battery Charge 12 hours (when fully charged)
Dimensions/Weight 8.43 x 3.23 x 2.25" (214 x 82 x 57 mm)/2 lb (900 g)
Click here for complete specifications on the SHIMPO FGE-500HXY

What's included with the SHIMPO FGE-500HXY

  • High Capacity Digital Force Gauge
  • AC adapter/charger
  • Carrying Case
  • 2 handles
  • Hanger
  • Metric thread to inch adapter and attachments (flat head, hook, chisel, notched head, cone head, extension rod)

Click on a category to view a selection of compatible accessories with the SHIMPO FGE-500HXY High Capacity Digital Force Gauge 500 lb/250 kg/2500 N.

SHIMPO FG-09V120UC Universal Adapter/Charger FG-09V120UC
120/240V AC Universal Adapter/Charger for TPN, TRC, FGE-XY, FGV-XY, FGE-HXY and FGV-HXY Series.




SHIMPO FG-M6COMP50U Compression Plate, M6 Thread, 50mm Diameter FG-M6COMP50U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO FG-M6COMP100U Compression Plate, M6 Thread, 100mm Diameter FG-M6COMP100U
The SHIMPO steel compression plate is an accessory for SHIMPO force gauge test stands and force gauges. It includes one compression plate that attaches to the test stand for top-load testing and compression or crush testing on large samples. The plate is made from stainless steel, which resists wear and corrosion, and it has a polished finish that can be wiped clean.




SHIMPO UNI-MTGPL Mounting Plate UNI-MTGPL
For use with FG-3000, FG-7000, FGE/V-XY, FGE/V-HXY Force Gauges.




SHIMPO FG-M4TM6 Thread Adapter, M4 (FEM) to M6 (MALE) FG-M4TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M4TJ10 Thread Adapter, M4 to 10/32 UNF FG-M4TJ10
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TM6 Thread Adapter, M10(FEM) to M6 (MALE) FG-M10TM6
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10TJ5/16 Thread Adapter, M10 to 5/16 18UNC FG-M10TJ5/16
For use with SHIMPO Test Stands and Force Gauges.




SHIMPO FG-M10RD Steel Extension Rod, M10 Thread FG-M10RD
For use with SHIMPO FGE-HX and FGV-HX Digital Force Gauges.




SHIMPO FG-M10CN Steel Cone Head Adapter for the FGE-HX and FGV-HX Series, M10 Thread FG-M10CN
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Made of stainless steel, which resists corrosion and wear.




SHIMPO FG-M10CL Steel Chisel Adapter for the FGE-HX and FGV-HX Series, M10 Thread FG-M10CL
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Made of stainless steel, which resists corrosion and wear.




SHIMPO FG-M10ADP Standard Steel Adapter Set for the FGE-HX and FGV-HX Series FG-M10ADP
For use with SHIMPO FGE-HX and FGV-HX High Capacity Digital Force Gauges. Set includes one flat, chisel, pointed, notched, hook, and extension rod. Features a M10 thread.




SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
