Shimpo FG-3007 Digital Gauge, 100.0 N, 350 ozf

Model: FG-3007

Shimpo FG-3007 Digital Gauge, 100.0 N, 350 ozf-


Downloads: datasheet manual

Shimpo FG-3007 Digital Gauge, 100.0 N, 350 ozf

Model: FG-3007

Combining one of the most compact housings, yet maintaining a large back-lit LCD, this gauge is designed to fit perfectly in hand for ease of use. Features three modes of operation: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points.

Combining one of the most compact housings, yet maintaining a large back-lit LCD, this gauge is designed to fit perfectly in hand for ease of use. Features three modes of operation: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points.

Sale Price $292.50 USD
Regular Price $325.00 USD
Availability 2 Days
Quantity

Add In-House Traceable Calibration to your FG-3007

Add In-House Traceable Calibration to your FG-3007


SHIMPO FG-3007 Offers

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail icons provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

These high- tech instruments can log up to 500 readings at the push of a button for instant data acquisition. The data can be viewed on screen, sent to optional printer, or uploaded on the free software program for graphing and statistical analysis.

Features

  • 1000 Hz Sample Rate combined with ±0.3% F.S. accuracy provides fast sampling, producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit's selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Calibration Certificate included along with popular adapter attachments
  • Free Data logging/graphing software available for free download on website

Applications

  • Quality inspection
  • Finished goods testing
  • R & D
  • Force stand testing

SHIMPO FG-3007 Specifications

Accuracy ±0.3% F.S.
Selectable Units N and ozf
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Track, Preset
Data Sampling Rate 1000 Hz
Display 160 x 128 dot matrix LCD with backlight
Display Update Rate 10 times/second
Resolution 0.1 N, 0.01 kgf, 0.1 ozf, 0.01 lbf
Memory 500 data
Set Point Programmable high and low limits in Preset Mode
Power 3.6 VDC 800mAH Ni-MH rechargeable batteries
Charger/Adaptor Universal USB/BM charger, Input: 110 to 240 VAC
Outputs USB, RS-232; High & Low Limit NPN's
Dimensions 5.5 x 2.8 x 1.4" (140 x 71 x 35.5 mm)
Weight 0.9 lb (0.4 kg)
Certifications CE
Click here for complete specifications on the SHIMPO FG-3007

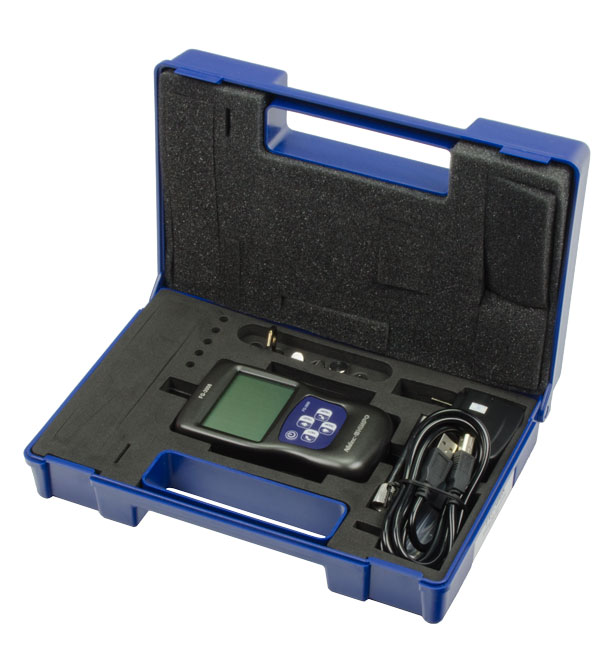

What's included with the SHIMPO FG-3007

  • Digital Gauge
  • Calibration Certificate
  • 6 x Attachments:
    • Hook
    • Flat Tip
    • Conical Tip
    • Chisel Tip
    • Notched Tip
    • Extension Shaft
  • AC Adaptor/Charger
  • USB Cable
