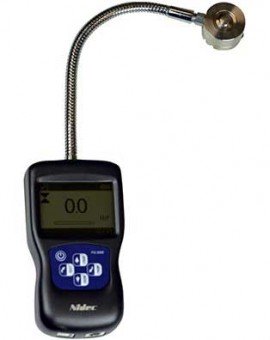

SHIMPO FG-3000R-50 Digital Force Gauge with Integral Ring Sensor, 50 kN (11 klbf)

Model: FG-3000R-50

SHIMPO FG-3000R-50 Digital Force Gauge with Integral Ring Sensor, 50 kN (11 klbf)-


Downloads: datasheet manual

SHIMPO FG-3000R-50 Digital Force Gauge with Integral Ring Sensor, 50 kN (11 klbf)

Model: FG-3000R-50

The new FG-3000R digital force gauges feature a compact housing with large back-lit LCD screen perfect handheld tool for repetetive testing such as on production lines. Includes an integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. This force gauge has a capacity of 10 kN (2250 lbf).

The new FG-3000R digital force gauges feature a compact housing with large back-lit LCD screen perfect handheld tool for repetetive testing such as on production lines. Includes an integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. This force gauge has a capacity of 10 kN (2250 lbf).

Sale Price $1705.50 USD
Regular Price $1895.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your FG-3000R-50

Add In-House Traceable Calibration to your FG-3000R-50


SHIMPO FG-3000R-50 Offers

The new FG-3000R Series digital force gauges are the choice for simple, cost-effective compression testing. Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000's provide menu programming for intuitive set-up of the instrument to your desired requirements.

Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

Features

  • Compact load-cell sensor combined with 8.7" (220 mm) length flexible, metal-braided cable enables readings to be taken in difficult locations
  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit's selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Free Data logging/graphing software available for free download on website

SHIMPO FG-3000R-50 Specifications

Capacity 50.0 kN (11 klbf)
Resolution 0.01 / 0.01
Accuracy ± 0.3% F.S.
Selectable Units kN, kgf, and klbf
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Track, Preset
Data Sampling Rate 1000 Hz
Display 160*128 dot matrix LCD with Backlight
Power 3.6 V dc 800 mAH Ni-MH rechargeable batteries
Battery Life Approximately 16 hours continuous use per full charge
Dimensions 5.5 x 2.8 x 1.4" (140 x 71 x 35.5mm)
Product Weight 1.1 lb (0.5 kg)
Click here for complete specifications on the SHIMPO FG-3000R-50

What's included with the SHIMPO FG-3000R-50

  • Force Gauge
  • AC Adaptor/Charger
  • USB Cable
  • Calibration Certificate
  • Carrying Case

Customer Reviews for the SHIMPO FG-3000R-50

Ask a question about SHIMPO FG-3000R-50 Digital Force Gauge with Integral Ring Sensor, 50 kN (11 klbf)

SHIMPO FG-3000R-50 Offers

The new FG-3000R Series digital force gauges are the choice for simple, cost-effective compression testing. Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000's provide menu programming for intuitive set-up of the instrument to your desired requirements.

Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

Features

  • Compact load-cell sensor combined with 8.7" (220 mm) length flexible, metal-braided cable enables readings to be taken in difficult locations
  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit's selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Free Data logging/graphing software available for free download on website

SHIMPO FG-3000R-50 Specifications

Capacity 50.0 kN (11 klbf)
Resolution 0.01 / 0.01
Accuracy ± 0.3% F.S.
Selectable Units kN, kgf, and klbf
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Track, Preset
Data Sampling Rate 1000 Hz
Display 160*128 dot matrix LCD with Backlight
Power 3.6 V dc 800 mAH Ni-MH rechargeable batteries
Battery Life Approximately 16 hours continuous use per full charge
Dimensions 5.5 x 2.8 x 1.4" (140 x 71 x 35.5mm)
Product Weight 1.1 lb (0.5 kg)
Click here for complete specifications on the SHIMPO FG-3000R-50

What's included with the SHIMPO FG-3000R-50

  • Force Gauge
  • AC Adaptor/Charger
  • USB Cable
  • Calibration Certificate
  • Carrying Case

Ask a question about SHIMPO FG-3000R-50 Digital Force Gauge with Integral Ring Sensor, 50 kN (11 klbf)

Customer Reviews for the SHIMPO FG-3000R-50
