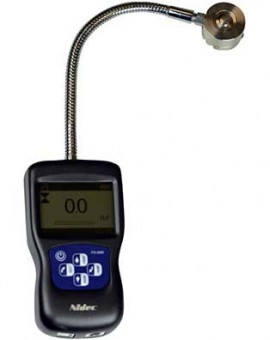

SHIMPO FG-3000R-5 Digital Force Gauge with Integral Ring Sensor, 5 kN (1100 lbf)

Model: FG-3000R-5

SHIMPO FG-3000R-5 Digital Force Gauge with Integral Ring Sensor, 5 kN (1100 lbf)-


Downloads: datasheet manual

SHIMPO FG-3000R-5 Digital Force Gauge with Integral Ring Sensor, 5 kN (1100 lbf)

Model: FG-3000R-5

This force attachment features a robust design with its serrated roller grips that allow for self-tightening of material specimens up to 0.39" (10 mm). Can easily be mounted force gauges and test stands.

This force attachment features a robust design with its serrated roller grips that allow for self-tightening of material specimens up to 0.39" (10 mm). Can easily be mounted force gauges and test stands.

Sale Price $985.50 USD
Regular Price $1095.00 USD
Availability 2 to 3 Weeks
Quantity

SHIMPO FG-3000R-5 Offers

The new FG-3000R Series digital force gauges are the choice for simple, cost-effective compression testing. Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000's provide menu programming for intuitive set-up of the instrument to your desired requirements.

Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

Features

  • Compact load-cell sensor combined with 8.7" (220 mm) length flexible, metal-braided cable enables readings to be taken in difficult locations
  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit's selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab

SHIMPO FG-3000R-5 Specifications

Capacity 5 kN (1100 lbf)
Resolution 0.001 / 1
Accuracy ± 0.3% F.S.
Selectable Units kN, kgf, N, and lbf
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Track, Preset
Data Sampling Rate 1000 Hz
Display 160*128 dot matrix LCD with Backlight
Power 3.6 V dc 800 mAH Ni-MH rechargeable batteries
Battery Life Approximately 16 hours continuous use per full charge
Dimensions 5.5 x 2.8 x 1.4" (140 x 71 x 35.5 mm)
Product Weight 1.1 lb (0.5 kg)
Click here for complete specifications on the SHIMPO FG-3000R-5

What's included with the SHIMPO FG-3000R-5

  • Force Gauge
  • AC Adaptor/Charger
  • USB Cable
  • Calibration Certificate
  • Carrying Case
