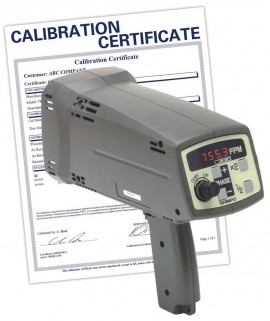

SHIMPO DT-725-NIST Battery Powered Stroboscope, 115V AC Charger, includes Traceable Certificate

Model: DT-725-NIST

SHIMPO DT-725-NIST Battery Powered Stroboscope, 115V AC Charger, -


Downloads: datasheet manual

SHIMPO DT-725-NIST Battery Powered Stroboscope, 115V AC Charger, includes Traceable Certificate

Model: DT-725-NIST

This light weight, highly stable and industrial-quality instrument is excellent for non-contact RPM measurement as well as for inspection and observation of moving parts by “freezing” or “slowing down” the action. This product includes a Traceable Certificate with full Data and Uncertainties.

This light weight, highly stable and industrial-quality instrument is excellent for non-contact RPM measurement as well as for inspection and observation of moving parts by “freezing” or “slowing down” the action.

Sale Price $630.00 USD
Regular Price $700.00 USD
Availability 3 Days
Quantity

SHIMPO DT-725-NIST Offers

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Bright LED Display Aids viewing in poorly lit areas
  • Light Weight Design
  • External trigger allows unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • Easy adjust flash rate controller dial
  • Synchronous output enables strobe to drive other strobes
  • Easy tripod or permanent mounting with integral mounting thread
  • Internal, fast-charge rechargeable battery supply

SHIMPO DT-725-NIST Specifications

Flashing Range 40.0 to 12,500 fpm
Accuracy ±0.02% of reading
Resolution 0.1 fpm: 40 to 4,999 fpm / 0.2 fpm: 5,000 to 7,999 fpm
0.5 fpm: 8,000 to 9,999 fpm / 1 fpm: 10,000 to 12,5000 fpm
Phase Shift Use +/- push buttons (360° in 6 seconds)
Output Signal NPN open collector (24 VDC max., 50 mA)
Typical: 150 µsec
Display 5 digits, 0.3" (8 mm) high, LED
Flash Duration 10 to 15 µsec
Operating Temperature 32 to 104°F (0 to 40°C)
Battery Life 1 to 2 hours depending on flash rate
Power Requirement Internal Battery Pack: 115 VAC or 220 VAC ±10% 60/50 Hz
Dimensions 7.28 x 4.72 x 4.72" (185 x 120 x 120 mm)
Click here for complete specifications on the SHIMPO DT-725-NIST

What's included with the SHIMPO DT-725-NIST

  • Stroboscope
  • Traceable Certificate with full Data and Uncertainties
  • Internal Rechargeable Battery
  • AC Adapter/Battery Charger
  • Spare Flash Tube
  • Protective Carrying Case
