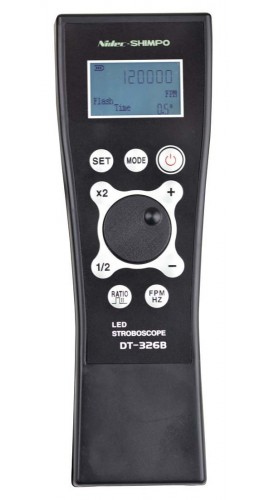

SHIMPO DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)

Model: DT-326B

SHIMPO DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)-


Downloads: datasheet manual

SHIMPO DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)

Model: DT-326B

Provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation.

Provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation.

Sale Price $625.50 USD
Regular Price $695.00 USD
Availability 3 Days
Quantity

SHIMPO DT-326B Offers

The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, fuel injectors, vibration analysis, audio speaker analysis, spindle spinning, cutting blade timing and sharpness, plus many more in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries.

Features

  • Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • 100 – 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
  • Long-life LED operation

SHIMPO DT-326B Specifications

Flash Rate Range 60 to 120,000 FPM; 1-2000 Hz
Accuracy 0.01% ±1 digit of F.S. @ 77°F (25°C)
Lux Rating 6000 FPM & 2.5°: Distance 8" (20 cm) 5800 lx with 4" (100 mm) irradiation dia., Distance 20" (50 cm) 1050 lx with 6" (152 mm) irradiation dia.
1500 FPM & 2.5°: Distance 8" (20 cm) 6400 lx with 4" (100 mm) irradiation dia., Distance 20" (50 cm) 1125 lx with 6" (152 mm) irradiation dia.
Lamp Lifetime Approximately 3 to 5 years depending on usage
Display Backlit LCD
Flash Duration 0.1°- 2.5°
Phase Shift 0-359°
Power Requirement 100-240 VAC 50/60Hz
Battery Lithium DC 10.8V 2000mA
Battery Life Approx. 12 hours depending on settings
Click here for complete specifications on the SHIMPO DT-326B

What's included with the SHIMPO DT-326B

  • Stroboscope
  • AC Power Adapter
  • Carrying Case
