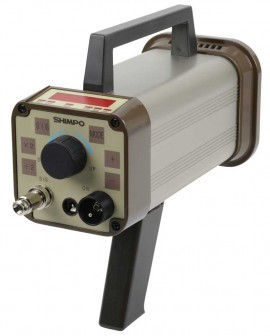

SHIMPO DT-315A Portable Stroboscope with Rechargeable Battery

Model: DT-315A

SHIMPO DT-315A Portable Stroboscope with Rechargeable Battery-


Downloads: datasheet manual

SHIMPO DT-315A Portable Stroboscope with Rechargeable Battery

Model: DT-315A

The microprocessor-controlled unit possesses the same great features of the DT-311A with the added convenience of total portability via its own internal power supply with up to one hour of full time, high intensity flash rate. Powered by rechargeable batteries located inside its rugged aluminum housing, it also performs as an AC line-powered strobe when plugged into its standard AC adapter/charger unit.

The microprocessor-controlled unit possesses the same great features of the DT-311A with the added convenience of total portability via its own internal power supply with up to one hour of full time, high intensity flash rate. Powered by rechargeable batteries located inside its rugged aluminum housing, it also performs as an AC line-powered strobe when plugged into its standard AC adapter/charger unit.

Sale Price $697.50 USD
Regular Price $775.00 USD
Availability 2 in Stock
Quantity

Add In-House Traceable Calibration to your DT-315A

Add In-House Traceable Calibration to your DT-315A


SHIMPO DT-315A Offers

Features

  • Internal, fast-charge rechargeable battery supply
  • Aluminum construction provides exceptional durability
  • High polish and focused reflector eliminates "blind" viewing areas
  • External trigger allows unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • High accuracy (±0.01% of reading) is ideal for QC inspection and process control
  • Synchronous output enables strobe to drive other strobes
  • Flash timer control conserves flash tube life
  • Easy tripod or permanent mounting with integral mounting thread

SHIMPO DT-315A Specifications

Flashing Range 40.0 to 35,000 fpm
Accuracy ±0.01% of reading
Resolution 0.1 fpm: 40.0 to 5,000 fpm / 0.2 fpm: 5,001 to 8,000 fpm
0.5 fpm: 8,001 to 10,000 fpm / 1 fpm: 10,001 to 35,000 fpm
Phase Shift Use +/- push buttons (360° in 6 seconds)
Output Signal Synchronous: 400 µsec.
Pulse output: Approx. 0 to 12 VDC amplitude
Impedance: 4.7 KΩ
Display 5 digits, 0.4" (10 mm) high, LED
Flash Duration 10 to 40 µsec
Sensor Power Supply 12 VDC (40 mA)
Power Requirement Rechargeable Battery or AC Line Power with included AC adapter
Dimensions 9.84 x 4.72 x 4.72" (250 x 120 x 120 mm)
Click here for complete specifications on the SHIMPO DT-315A

What's included with the SHIMPO DT-315A

  • Stroboscope
  • AC Charger/Adapter
  • Internal Rechargeable Battery
  • Flash Tube Removing Tool
  • Handle
  • Instruction Manual

Click on a category to view a selection of compatible accessories with the SHIMPO DT-315A Portable Stroboscope with Rechargeable Battery.

SHIMPO SE-G2 Proximity Gear Sensor SE-G2
Scalable. Selectable PPR (pulses per revolution).




SHIMPO SG-300 Rubber Guard for DT-300 Series Strobes SG-300
A shock absorbing rubber boot that will also help protect against liquid damage.




SHIMPO FLASHTUBE311-2 Replacement Flashtube for DT-311A and DT-315A stroboscopes FLASHTUBE311-2
Spare flash tube for DT-300 series strobes. Tube life of approximately 100 million flashes at 1800 FPM (flashes per minute).





SHIMPO BAT-DT315AP-ASSY Internal Rechargeable Battery Assembly BAT-DT315AP-ASSY
Internal Rechargeable Battery Assembly for DT-315A Stroboscope.
