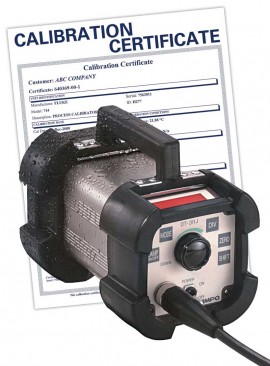

SHIMPO DT-3011J-NIST Stroboscope, 115 VAC, includes Traceable Certificate

Model: DT-3011J-NIST

SHIMPO DT-3011J-NIST Stroboscope, 115 VAC,  -


Downloads: datasheet manual

SHIMPO DT-3011J-NIST Stroboscope, 115 VAC, includes Traceable Certificate

Model: DT-3011J-NIST

This stroboscope will perform where other stroboscopes will not. Used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery, this unit combines rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle. This product includes a Traceable Certificate with full Data and Uncertainties.

This stroboscope will perform where other stroboscopes will not. Used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery, this unit combines rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle.

Sale Price $1129.50 USD
Regular Price $1255.00 USD
Availability 2 to 3 Weeks
Quantity

SHIMPO DT-3011J-NIST Offers

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

  • Aluminum construction provides exceptional durability
  • High polish and focused reflector eliminates “blind” viewing areas
  • External trigger allows unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • High accuracy (±0.01% of reading) is ideal for QC inspection and process control
  • Synchronous output enables strobe to drive other strobes
  • Flash timer control conserves flash tube life
  • Easy tripod or permanent mounting with integral mounting thread

SHIMPO DT-3011J-NIST Specifications

Phase Shift 0 to 359°/1° increments
Flash Rate/Phase Angle Setter Rotary Dial
Display 4 digit, 0.39" (10 mm) High, Red LED
Input Signal High Level: 5 to 24V Pulse
Low Level: 0 to 1V Pulse
Minimum: 2 µsec
Impedance: <10 KΩ
Accuracy ±1 digit
Flash Range 200 to 1500 fpm
Operating Temperature 32 to 104°F (0 to 40°C)
Power Requirement 115 VAC ±5% 50/60 Hz
Power Consumption Max: 20 VA
Weight Product: 4.2 lbs (1.9 kg)
Package: 6.2 lbs (2.81 kg)
Click here for complete specifications on the SHIMPO DT-3011J-NIST

What's included with the SHIMPO DT-3011J-NIST

  • Stroboscope
  • Traceable Certificate with full Data and Uncertainties
  • Power Cable
  • Rubber Strobe Guard with Handle
  • Instruction Manual
