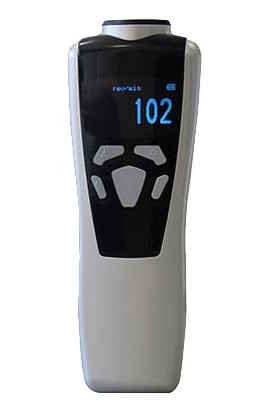

SHIMPO DT-2100 Contact/Non-Contact Tachometer/Data Logger

Model: DT-2100

SHIMPO DT-2100 Contact/Non-Contact Tachometer/Data Logger-


Downloads: datasheet manual

SHIMPO DT-2100 Contact/Non-Contact Tachometer/Data Logger

Model: DT-2100

Combination contact/non-contact tachometer with auto-detection of contact adapter. Data logging with continous, single unit or statistics modes. Built-in memory with USB data output.

Combination contact/non-contact tachometer with auto-detection of contact adapter. Data logging with continous, single unit or statistics modes. Built-in memory with USB data output.

Sale Price $310.50 USD
Regular Price $345.00 USD
Availability 3 Days
Quantity

Add In-House Traceable Calibration to your DT-2100

Add In-House Traceable Calibration to your DT-2100


SHIMPO DT-2100 Offers

Providing an unequaled level of user flexibility, the DT-2100 is the premium tachometer for engineers and maintenance professionals. If simplicity is required, the DT-2100 can accommodate with its selectable display styles allowing results to be viewed in standard numerical, chart, bar graph or gauge modes. Data recording can be set for single point or continuous logging. The DT-2100 even allows multiple users to store their programmed settings. There is no need to spend time checking all settings to ensure proper performance.

The DT-2100 Tachometer is 2 units in 1 with the included 6" circumference contact adapter utilized in linear rate measurement. Most impressive, the DT-2100 provides convenient switching between non-contact and contact operation with its auto-detect function that instantly recognizes if contact adapter is installed.

Features

  • Data storage in selected groups allows testing of multiple machinery without mixing data
  • View data and statistics on display or utilize optional software for additional analysis on a PC
  • Max., Min., Ave., standard deviation & number of recordings as well as acceleration are calculated and reviewable
  • Bright, graphical LED rotatable display with multiple display modes provides testing flexibility in any application indoor or outdoor setting
  • Compact and light weight for comfortable handheld testing, or for extended tests mount with threaded insert to tripod or machinery fixture
  • Auto-detect feature instantly identifies if contact adapter is installed, allows rapid changing from contact to non-contact testing
  • Comparator setting enables upper/lower limit threshold icon indicators to appear; provides immediate pass/fail analysis
  • Length (distance) measurement function in non-contact mode allows length measuring in applications where making contact with the machinery is difficult and/or dangerous
  • Scale adjustment provides ability to override the data in situations where known offsets are required or multiples make more sense to the user.

SHIMPO DT-2100 Specifications

Range Non-Contact: 6-99,999 rpm; Contact: 0.8-25,000 rpm
Accuracy ±0.006% of reading ±1 least significant digit
Measuring Units Speed: rpm, m/min., cm/min., inch/min., ft/min., yds/min., rps, m/sec, cm/sec, inch/sec, km/hr, mph; Distance: cm, m, km, in, ft, yd;
Memory Continuous Mode: 1000; Single Mode: 100; Statistics Mode: 100
Measuring Distance 2" to 13.1' (50 to 4,000 mm)
Display Graphical Blue Light OLED, reversible
Display Update Time 100 ms, 500 ms, 1 sec, 5 sec
Power Requirement 2 AA 1.5V batteries or USB
Battery Life Approx. 20 hours with brightness set to 20%
Dimensions/Weight 6.1 x 2.2 x 1.4" (155 x 55 x 35 mm)/5.6 oz (159 g)
Click here for complete specifications on the SHIMPO DT-2100

What's included with the SHIMPO DT-2100

  • Datalogging Tachometer
  • Cone Adapters (2)
  • Funnel Adapter
  • Contact Adapter
  • 3 1/2" extension shaft
  • Master Wheel, 6" circ.
  • 2 AA Batteries
  • Carrying Case

Click on a category to view a selection of compatible accessories with the SHIMPO DT-2100 Contact/Non-Contact Tachometer/Data Logger.

SHIMPO FPM-12 Measuring Wheel, 12" Circumference FPM-12
For use with handheld contact tachometers. Measuring wheel with 12" circumference for contact linear rate and length measurements.




SHIMPO FPM-6-GV Grooved Measuring Wheel, 6" Circumference FPM-6-GV
For use with handheld contact tachometers. Grooved measuring wheel with 6" circumference for contact linear rate and length measurements.




SHIMPO CONE-3/4 Cone Tip Adapter, 3/4" CONE-3/4
For use with DT Series handheld tachometers.




SHIMPO CONE-1-1/4 Cone Tip Adapter, 1-1/4" CONE-1-1/4
For use with DT Series handheld tachometers.




SHIMPO DT-2100-OP-CAS Replacement Contact Adapter for the DT-2100 DT-2100-OP-CAS
For use with the DT-2100 Datalogging Tachometer.




SHIMPO FPM-6 Measuring Wheel, 6" Circumference FPM-6
For use with handheld contact tachometers. Measuring wheel with 6" circumference for contact linear rate and length measurements.




REED CONE Replacement Cone Adapter CONE
For use with REED tachometers.




SHIMPO DT-2100-OP-PCS PC Software with USB cable for the DT-2100 DT-2100-OP-PCS
For use with the DT-2100 Datalogging Tachometer. Provides the user the ability to program the tachometer to their requirements, as well as enables more refined analysis of the data.




SHIMPO FUNNEL-3/4 Funnel Adapter, 3/4" FUNNEL-3/4
For use with handheld contact tachometers for contact RPM measurments.




SHIMPO TAB-SHEET Reflective Tab, Sheet of 35, 1/2" Squares TAB-SHEET
For use with all non-contact and combination tachometer models. Affix the tabs to any rotating mechanism to take a speed reading with a laser tachometer.




SHIMPO FUNNEL Funnel Adapter, 1/2" FUNNEL
For use with handheld contact tachometers for contact RPM measurments.




SHIMPO TAPE Reflective Tape Strip, 1" x 7-3/4" TAPE
For use with all non-contact and combination tachometer models. Affix the tape strip to any rotating mechanism to take a speed reading with a laser tachometer.




SHIMPO EXT-Shaft Extension Shaft, 3-1/2" EXT-SHAFT
3-1/2" extension shaft for DT Series handheld tachometers.
