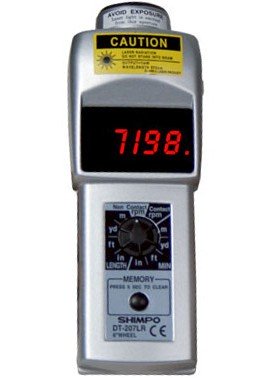

SHIMPO DT-207LR Digital Handheld Tachometer, LED, 6in wheel

Model: DT-207LR

SHIMPO DT-207LR Digital Handheld Tachometer, LED, 6in wheel-


Downloads: datasheet manual

SHIMPO DT-207LR Digital Handheld Tachometer, LED, 6in wheel

Model: DT-207LR

One rotary switch selects specific operating mode for measurement of rotational, linear and surface speeds; RPM, MPM, YPM, FPM, IPM, and total meters, yards, feet and inches. Provides 13 readings - gives last reading, maximum, minimum and 10 intermediate speed readings - automatically or by selection to 5 minutes or more.

One rotary switch selects specific operating mode for measurement of rotational, linear and surface speeds; RPM, MPM, YPM, FPM, IPM, and total meters, yards, feet and inches. Provides 13 readings - gives last reading, maximum, minimum and 10 intermediate speed readings - automatically or by selection to 5 minutes or more.

Sale Price $274.50 USD
Regular Price $305.00 USD
Availability 11 in Stock
Quantity

Add In-House Traceable Calibration to your DT-207LR

Add In-House Traceable Calibration to your DT-207LR


SHIMPO DT-207LR Offers

The SHIMPO DT-207LR tachometer incorporates laser technology yet retains the hallmark rugged construction and reliable quality components; it offers incredible value and versatility as it performs non-contact and contact applications via the included contact adapter. We’re confident you’ll agree that these fine units are the most advanced handheld tachometers on the market! One year warranty.

Features

  • Sophisticated laser beam detection
  • Exceptional accuracy
  • Length and rate functions
  • Multi-mode speed selection
  • Broad speed range (up to 99,999 RPM)
  • Hardy aluminum construction
  • Large 5 digit display
  • Expansive 10 test memory capacity (selectable to 5 minutes or more)
  • LExtended battery life (25 - 40 hours)
  • Free N.I.S.T. certificate
  • CE mark

Benefits

  • Safely allows RPM detection in hard- to-reach or dangerous areas
  • Assures reliable measurement results
  • Offers expanded measurement capabilities
  • 9 selections allow optimum versatility
  • Covers a wide range of applications
  • Assures maintenance-free performance for many years
  • Numbers are easily readable
  • Stores last/min/max readings for thorough equipment/process inspection
  • Advanced power management for longer operating times/increased productivity
  • Permits easy compliance with regulations
  • Compliant with applicable EU directives

SHIMPO DT-207LR Specifications

Display Range 6 – 99,999 rpm
Accuracy ±1 rpm: 6 -8,300 rpm, ±2 rpm: 8,300 – 25,000 rpm, ±0.006% of reading ±1 digit (±6 rpm max.) 25,000 – 99,999 rpm
Display 5 digit 0.4" (10 mm) high LED
Measuring Units rpm (on contact using adapter, included) for YPM, mPM, FPM, IPM, and Length: YRD, m, FT and IN
Measuring Distance 1" (25.4mm) to 20' (6m)
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements)
Detection Laser diode / contact
Update Time 1 second (typical)
Power Requirement 2 AA 1.5V batteries (Life: Approx. 25 hrs)
Construction Die-cast aluminum housing
Operating Temperature 32° – 113° F (0° – 45° C)
Dimensions 6.6" L x 2.4" W x 1.8" H (167.5 mm x 60 mm x 46 mm)
Product Weight 0.8 lb (365 g)
Package Weight Approx. 2 lb (.91 kg)
Approvals CE
Warranty 2-Year
Click here for complete specifications on the SHIMPO DT-207LR

What's included with the SHIMPO DT-207LR

  • Tachometer
  • Reflective Tape
  • 2 Cone Adapters
  • Funnel Adapter
  • 3 1/2" Extension Shaft
  • Carrying Case
  • NIST Certificate
  • Master Wheel (6" cir.)
  • Contact Adapter

Click on a category to view a selection of compatible accessories with the SHIMPO DT-207LR Digital Handheld Tachometer, LED, 6in wheel.

REED CONE Replacement Cone Adapter CONE
For use with REED tachometers.




SHIMPO CONE-1-1/4 Cone Tip Adapter, 1-1/4" CONE-1-1/4
For use with DT Series handheld tachometers.




SHIMPO CONE-3/4 Cone Tip Adapter, 3/4" CONE-3/4
For use with DT Series handheld tachometers.




SHIMPO DT-ADP-200LR Contact Adapter DT-ADP-200LR
Contact Adapter for Shimpo Handheld Tachometers.




SHIMPO FPM-6-GV Grooved Measuring Wheel, 6" Circumference FPM-6-GV
For use with handheld contact tachometers. Grooved measuring wheel with 6" circumference for contact linear rate and length measurements.




REED RT100 Reflective Tape, 24" RT100
Improve the detection of rotating objects with the use of reflective tape. For use with REED tachometers.




SHIMPO DT-CARRY100 Carrying Case for SHIMPO Handheld Tachometers DT-CARRY100
Carrying Case for the DT-105, DT-105-S12, DT-107A, DT-107A-S12, DT-205LR, DT-205LR-S12, DT-207LR and DT-207LR-S12 Tachometers.




SHIMPO TAPE Reflective Tape Strip, 1" x 7-3/4" TAPE
For use with all non-contact and combination tachometer models. Affix the tape strip to any rotating mechanism to take a speed reading with a laser tachometer.
