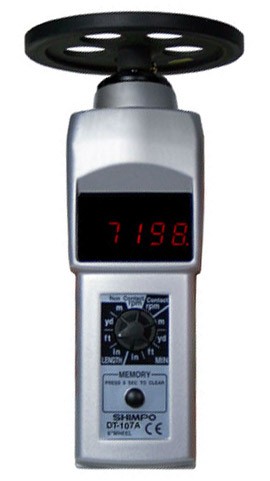

SHIMPO DT-107A-S12 LED Contact Tachometer with contact wheel

Model: DT-107A-S12

SHIMPO DT-107A-S12 LED Contact Tachometer with contact wheel-


Downloads: datasheet manual

SHIMPO DT-107A-S12 LED Contact Tachometer with contact wheel

Model: DT-107A-S12

Comes with precise technology and user-friendly functions, allowing this LED contact tachometer to provide high accuracy in measuring speed and length via it's 12" (304.8 mm) wheel. Additionally, this instrument comes equipped with a NIST certificate.

Comes with precise technology and user-friendly functions, allowing this LED contact tachometer to provide high accuracy in measuring speed and length via it's 12" (304.8 mm) wheel. Additionally, this instrument comes equipped with a NIST certificate.

Sale Price $292.50 USD
Regular Price $325.00 USD
Availability 3 in Stock
Quantity

Add In-House Traceable Calibration to your DT-107A-S12

Add In-House Traceable Calibration to your DT-107A-S12


SHIMPO DT-107A-S12 Offers

Features

  • Outstanding accuracy allows usage in the strictest applications
  • Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
  • Large 5 digit display aids user visibility
  • Expansive 10 measurement memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
  • Long-life battery (25-40 hrs. continuous use) eliminates concerns of being down during testing
  • Compact, ergonomic design allows easy grip
  • Rear threaded inserts provides option to mount to stand or other device
  • Available display options of either LCD or vibrant, bright red LED
  • CE Mark combined with free N.I.S.T. certificate provides peace of mind due to the quality of the instrument

SHIMPO DT-107A-S12 Specifications

Display Range 0.10 to 25,000RPM with floating decimal
Accuracy ±0.06 rpm: 0.10 to 999.9 rpm
±0.6 rpm: 1,000.0 to 9,999.9 rpm
±0.006% of reading ±1 digit (±2 rpm max.) 25,000 rpm
Display 5 digit 0.4” (10 mm) high LED
Measuring Units Revolution: RPH, RPM
Feet: FPH, FPM
Miles: MPH
Yards: YPH, YPM
Inches: IPM
Meters: mPH, mPM
Length: m, cm, inches, feet, yards
Total Revolutions: REV
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements)
Detection Optical coupler, 60 pulses/rev
Update Time 1 second (typical)
Over Range Indicator Flashing numerals
Power Requirement 2 x AA 1.5 V batteries (Life: approximately 65 hrs)
Operating Temperature 32 to 113°F (0 to 45°C)
Construction Die-cast aluminum housing
Dimensions 7.2 x 2.4 x 1.8" (182.5 x 60 x 46 mm)
Weight 0.9 lb (400 g)
Click here for complete specifications on the SHIMPO DT-107A-S12

What's included with the SHIMPO DT-107A-S12

  • Tachometer
  • NIST Certificate
  • 2 x Cone Adapters
  • Funnel Adapter
  • Extension Shaft
  • Master Wheel
  • Carrying Case
  • 2 x AA Batteries
  • One-Year Warranty

Click on a category to view a selection of compatible accessories with the SHIMPO DT-107A-S12 LED Contact Tachometer with contact wheel.

REED CONE Replacement Cone Adapter CONE
For use with REED tachometers.




SHIMPO CONE-1-1/4 Cone Tip Adapter, 1-1/4" CONE-1-1/4
For use with DT Series handheld tachometers.




SHIMPO CONE-3/4 Cone Tip Adapter, 3/4" CONE-3/4
For use with DT Series handheld tachometers.




SHIMPO FPM-6-GV Grooved Measuring Wheel, 6" Circumference FPM-6-GV
For use with handheld contact tachometers. Grooved measuring wheel with 6" circumference for contact linear rate and length measurements.
