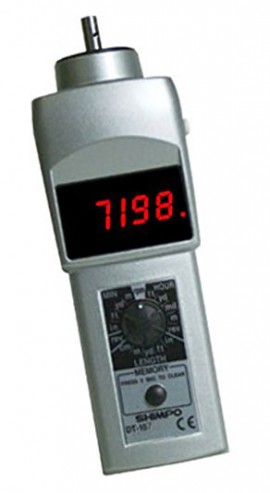

SHIMPO DT-107A-12KMW Contact Tachometer with 12" circumference aluminum knurled measuring wheel

Model: DT-107A-12KMW

SHIMPO DT-107A-12KMW Contact Tachometer with 12" circumference aluminum knurled measuring wheel-


Downloads: datasheet manual

SHIMPO DT-107A-12KMW Contact Tachometer with 12" circumference aluminum knurled measuring wheel

Model: DT-107A-12KMW

Features memory storage, quick adjustment unit knob, length functions, retrieval of last, maximum and minimum values, and LED display. The 12" circumference aluminum wheel with knurled edge aids in usage where wheel slippage may occur as well as in high-temperature applications.

Features memory storage, quick adjustment unit knob, length functions, retrieval of last, maximum and minimum values, and LED display. The 12" circumference aluminum wheel with knurled edge aids in usage where wheel slippage may occur as well as in high-temperature applications.

Sale Price $405.00 USD
Regular Price $450.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your DT-107A-12KMW

Add In-House Traceable Calibration to your DT-107A-12KMW


SHIMPO DT-107A-12KMW Offers

Features

  • Outstanding accuracy allows usage in the strictest applications
  • Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
  • Wide field selection of units in both instantaneous rate as well as totalized length satisfies a multitude of user requirements
  • 10 memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
  • Long-life battery (25 to 40 hrs continuous use) eliminates concerns of being down during testing
  • Rear threaded inserts provides option to mount to stand or other device
  • LED display

SHIMPO DT-107A-12KMW Specifications

Display Range 0.10 to 25,000 RPM with floating decimal
Accuracy ±0.06 rpm: 0.10 to 999.9 rpm
±0.6 rpm: 1000.0 to 9999.9 rpm
±0.006% of reading ±1 digit (±2 rpm max.) 25,000 rpm
Display 5 digit 0.4" (10 mm) high LED
Measuring Units Revolution: RPH, RPM
Feet: FPH, FPM
Miles: MPH
Yards: YPH, YPM
Inches: IPM
Meters: mPH, mPM
Length: m, cm, inches, feet, yards
Total revolutions: REV
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements)
Detection Optical coupler, 60 pulses/rev.
Update Time 1 second (typical)
Over Range Indicator Flashing numerals
Power Requirement 2 x AA 1.5 V batteries (life: Approximately 40 hrs)
Operating Temperature 32 to 113°F (0 to 45°C)
Construction Die-cast aluminum housing
Dimensions 7.2 x 2.4 x 1.8" (182.5 x 60 x 46 mm)
Weight 0.9 lb (400 g)
Approvals CE
Click here for complete specifications on the SHIMPO DT-107A-12KMW

What's included with the SHIMPO DT-107A-12KMW

  • Tachometer
  • ISO Certificate with full Data and Uncertainties
  • 2 x Cone Adapters
  • Funnel Adapter
  • 3½" Extension Shaft
  • Master Wheel
  • Carrying Case

Customer Reviews for the SHIMPO DT-107A-12KMW

Ask a question about SHIMPO DT-107A-12KMW Contact Tachometer with 12" circumference aluminum knurled measuring wheel

SHIMPO DT-107A-12KMW Offers

Features

  • Outstanding accuracy allows usage in the strictest applications
  • Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
  • Wide field selection of units in both instantaneous rate as well as totalized length satisfies a multitude of user requirements
  • 10 memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
  • Long-life battery (25 to 40 hrs continuous use) eliminates concerns of being down during testing
  • Rear threaded inserts provides option to mount to stand or other device
  • LED display

SHIMPO DT-107A-12KMW Specifications

Display Range 0.10 to 25,000 RPM with floating decimal
Accuracy ±0.06 rpm: 0.10 to 999.9 rpm
±0.6 rpm: 1000.0 to 9999.9 rpm
±0.006% of reading ±1 digit (±2 rpm max.) 25,000 rpm
Display 5 digit 0.4" (10 mm) high LED
Measuring Units Revolution: RPH, RPM
Feet: FPH, FPM
Miles: MPH
Yards: YPH, YPM
Inches: IPM
Meters: mPH, mPM
Length: m, cm, inches, feet, yards
Total revolutions: REV
Memory System 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements)
Detection Optical coupler, 60 pulses/rev.
Update Time 1 second (typical)
Over Range Indicator Flashing numerals
Power Requirement 2 x AA 1.5 V batteries (life: Approximately 40 hrs)
Operating Temperature 32 to 113°F (0 to 45°C)
Construction Die-cast aluminum housing
Dimensions 7.2 x 2.4 x 1.8" (182.5 x 60 x 46 mm)
Weight 0.9 lb (400 g)
Approvals CE
Click here for complete specifications on the SHIMPO DT-107A-12KMW

What's included with the SHIMPO DT-107A-12KMW

  • Tachometer
  • ISO Certificate with full Data and Uncertainties
  • 2 x Cone Adapters
  • Funnel Adapter
  • 3½" Extension Shaft
  • Master Wheel
  • Carrying Case
